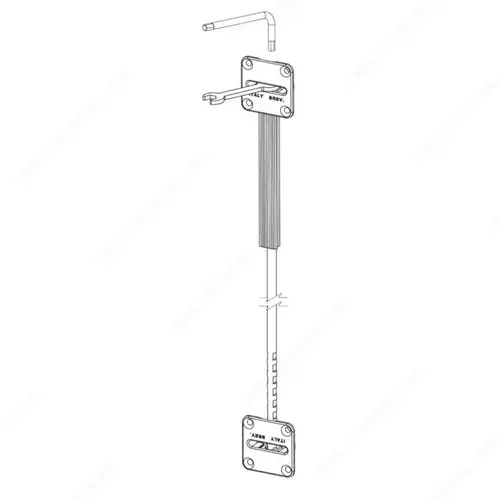

Sugatsune America DSR213233025 Recessed and Concealed Door Straightener
Item #: DSR213233025 by Sugatsune America
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Packaging Format
Per unit
Production Time
Stock
Milling Diameter
1 3/8 in
Milling Depth
11/32 in
Door Height
78 3/4 to 95 1/4 in
Door Thickness
5/8 in
Mounting Type
Recessed
Product Overview
Encastr avec embouts pour une apparence propre
Protect your doors from warping or bowing with Sugatsune's door panel straightener. Warped cabinet doors are a common long-term problem that can be largely prevented by strengthening the material with this properly fitted stiffener system.
The DSR series is recessed into the interior of the cabinet door. This allows the straightener to integrate into the cabinet's overall aesthetic, offering a clean, elegant appearance both inside and out while conferring much greater durability against bowed or warped cabinet doors.
Important Information
- Install at time of production to prevent door from warping
- Adjustors are installed 60 mm from the top and bottom of the door
- Fully concealed door straightener, recess mounted under laminate
- 10 mm adjustment can be made from the top of the door with an M4 Allen Key (included)
- Min. door thickness: 12mm (1/2 in), 16mm (5/8 in) or 18mm (11/16 in)
Note: Packaged in boxes of 25 pieces, but sold by unit. Repack fee will be charged for special order items if open box quantities are ordered.
Protect your doors from warping or bowing with Sugatsune's door panel straightener. Warped cabinet doors are a common long-term problem that can be largely prevented by strengthening the material with this properly fitted stiffener system.
The DSR series is recessed into the interior of the cabinet door. This allows the straightener to integrate into the cabinet's overall aesthetic, offering a clean, elegant appearance both inside and out while conferring much greater durability against bowed or warped cabinet doors.
Important Information
- Install at time of production to prevent door from warping
- Adjustors are installed 60 mm from the top and bottom of the door
- Fully concealed door straightener, recess mounted under laminate
- 10 mm adjustment can be made from the top of the door with an M4 Allen Key (included)
- Min. door thickness: 12mm (1/2 in), 16mm (5/8 in) or 18mm (11/16 in)
Note: Packaged in boxes of 25 pieces, but sold by unit. Repack fee will be charged for special order items if open box quantities are ordered.
