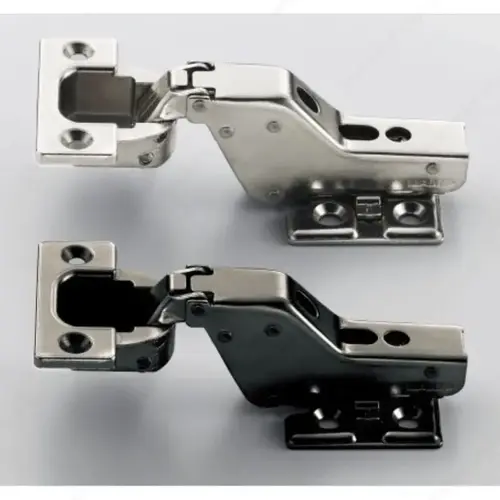

Sugatsune America WEBSO1248220 J95 Heavy Duty Concealed Hinge Black Nickel
Item #: WEBSO1248220 by Sugatsune America
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Black Nickel
Load Capacity
55.1 lb
Door position
Inset
Hinge Opening Angle
+95°
Closing Mechanism
Free Swing
Fixing Type
Screw-On
Production Time
Special Online Order
Thickness of Glass
5/16 to 13/32 in
Use Type
Standard Door, Glass
Product Overview
The J95 heavy duty European hinge can suport wood doors up to 88 lbs (40 kg) or glass doors up to 77 lbs (35 kg).
Advantages And Benefits
- Maximum door width: 800 mm (31-1/2 in) per 2 hinges
- Clip-on design for easy installation
- 3-way adjustment once door is installed
- Passed 40,000 cycle test
Important Information
25kg (2 hinge) door dimensions:
- For 8 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 1850 mm (72 in) H
- For 10 mm glass panel, maximum door dimensions = 700 mm (27.5 in) W x 1850 mm (72 in) H
35kg (3 hinge) door dimensions:
- For 8 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 2000 mm (78 in) H
- For 10 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 2000 mm (78 in) H
*Requires 6 x M5 or equivalent (US #10) screws: 2 for each hinge and 4 for each mounting plate
** Mounting plate sold separately
Advantages And Benefits
- Maximum door width: 800 mm (31-1/2 in) per 2 hinges
- Clip-on design for easy installation
- 3-way adjustment once door is installed
- Passed 40,000 cycle test
Important Information
25kg (2 hinge) door dimensions:
- For 8 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 1850 mm (72 in) H
- For 10 mm glass panel, maximum door dimensions = 700 mm (27.5 in) W x 1850 mm (72 in) H
35kg (3 hinge) door dimensions:
- For 8 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 2000 mm (78 in) H
- For 10 mm glass panel, maximum door dimensions = 800 mm (31.5 in) W x 2000 mm (78 in) H
*Requires 6 x M5 or equivalent (US #10) screws: 2 for each hinge and 4 for each mounting plate
** Mounting plate sold separately
