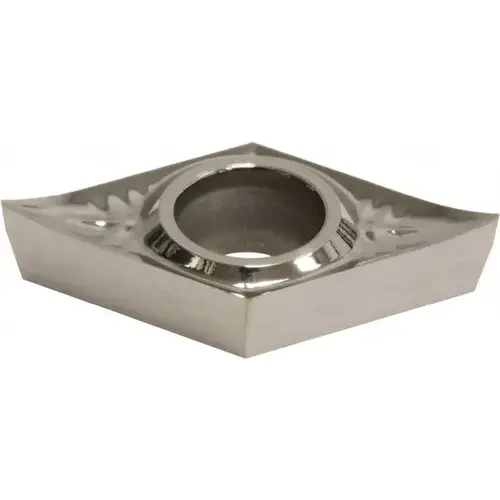

Sumitomo 1033363-XCP10 Turning Insert: DCGT32.51NAG-H1, Solid Carbide - pack of 10

Item #: 1033363-XCP10 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$285.08

/package
SAVE UP TO 28.51
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 6 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

DCGT32.51NAG

Standards

ANSI

Included Angle

55.0

Insert Material

Solid Carbide

Series

DC

Coating Process

Uncoated

Coating/Finish

Uncoated

Corner Radius (Decimal Inch)

0.0156

Material Grade

C3

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4567

Insert Thickness (Decimal Inch)

0.1563

Insert Thickness (Inch)

5/32

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/64

Insert Shape

Diamond

Clearance Code

C

Rake Angle

20

Insert Shape Code

D

Chip Breaker

NAG

Insert Style

DCGT

Insert Size Code

32.51

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.1732

Relief Angle

7

Inscribed Circle (Inch)

3/8

Manufacturer Grade

H1

Iso Code

DCGT11T304N-AG

Product Overview
Turning Insert: DCGT32.51NAG-H1, Solid Carbide Uncoated, Neutral, 0.4567" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series DC
