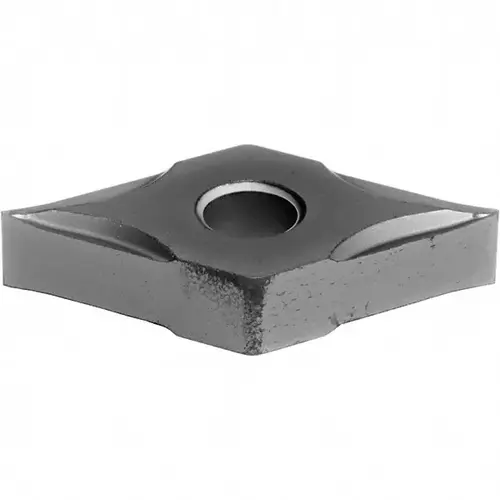

Sumitomo 10T5AEX Turning Insert: DNGG432ESU-AC5015S, Solid Carbide - TiAlSiN Coated, Neutral, 0.6102" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 55 degree Diamond, Series AC5000S
Item #: 10T5AEX by Sumitomo
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ANSI
Included Angle
55
Insert Material
Carbide
Series
AC5000S
Coating Process
PVD
Coating/Finish
TiAlSiN
Corner Radius (Decimal Inch)
0.0313
Manufacturers Catalog Number
DNGG432ESU-AC5015S
Material Grade
S10
Primary Workpiece Material
Powdered Metal
Primary Workpiece Material Code
S
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.6102
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Rake
Negative
Insert Hand
Neutral
Insert Shape
Diamond
Clearance Code
N
Rake Angle
13
Full Radius
No
Insert Shape Code
D
Chip Breaker
ESU
Insert Style
DNGG
Insert Size Code
432
Tolerance Code
G
Hole Diameter (Decimal Inch)
0.3126
Relief Angle
0
Inscribed Circle (Inch)
1/2
Manufacturer Grade
AC5015S
Proprietary Coating Designation
Absotech Bronze
Iso Code
DNGG150408N-SU
Product Overview
Turning Insert: DNGG432ESU-AC5015S, Solid Carbide - TiAlSiN Coated, Neutral, 0.6102" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 55 degree Diamond, Series AC5000S TiAlSiN Coated, Neutral, 0.6102" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 55 degree Diamond, Series AC5000S
