Turning Insert: CNGG432ESU-AC5025S, Solid Carbide - TiAlSiN Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 80 degree Diamond, Series AC5000S

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

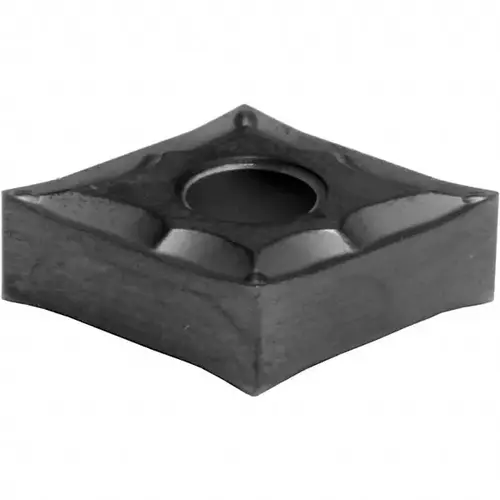

Sumitomo 10T6AEQ Turning Insert: CNGG432ESU-AC5025S, Solid Carbide - TiAlSiN Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 80 degree Diamond, Series AC5000S

Item #: 10T6AEQ by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$20.16

/each
SAVE UP TO 2.02
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 60 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

AC5000S

Coating Process

PVD

Coating/Finish

TiAlSiN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

CNGG432ESUAC5025S

Material Grade

S20

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Negative

Insert Hand

Neutral

Insert Shape

Diamond

Clearance Code

N

Rake Angle

13

Full Radius

No

Insert Shape Code

C

Chip Breaker

ESU

Insert Style

CNGG

Insert Size Code

432

Tolerance Code

G

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC5025S

Proprietary Coating Designation

Absotech Bronze

Iso Code

CNGG120408N-SU

Product Overview
Turning Insert: CNGG432ESU-AC5025S, Solid Carbide - TiAlSiN Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 80 degree Diamond, Series AC5000S TiAlSiN Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 0.0313" Corner Radius, 80 degree Diamond, Series AC5000S
