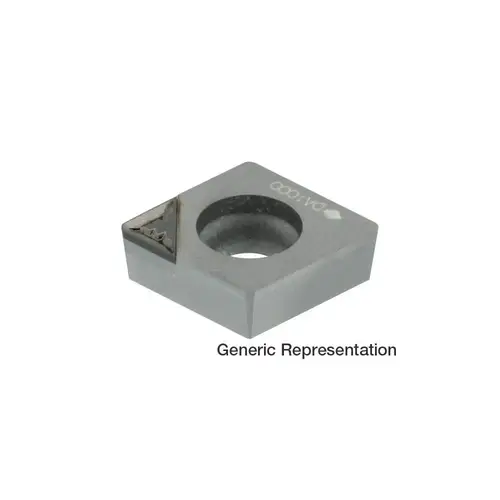

Sumitomo 16HQEEW Turning Insert: NF-CCMT21.51LD-DA1000, Polycrystalline Diamond Bright/Uncoated

Item #: 16HQEEW by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$92.84

/each
SAVE UP TO 9.28
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 77 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ANSI

Included Angle

80

Insert Material

PCD

Series

C

Side Clearance

Positive

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Manufacturers Catalog Number

NF-CCMT21.51LD-DA1000

Material Grade

PCD

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Pin

Insert Length (Decimal Inch)

0.1142

Insert Thickness (Decimal Inch)

0.0709

Insert Thickness (Inch)

3/32

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

C

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

LD

Insert Style

CCMT

Insert Size Code

21.51

Tolerance Code

M

Relief Angle

7

Inscribed Circle (Inch)

1/4

Hole Diameter (Mm) ( - 0 Decimals)

2.80

Manufacturer Grade

DA1000

ISO Size Code

060204

Grade Characteristics

Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness

ANSI Size Code

21.51

ISO Insert Code

CCMT060204

Proprietary Coating Designation

Uncoated

Iso Code

NF-CCMT060204N-LD

ANSI Insert Code

CCMT21.51

Product Overview
Turning Insert: NF-CCMT21.51LD-DA1000, Polycrystalline Diamond Uncoated, Neutral, 0.1142" Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond, Series C
