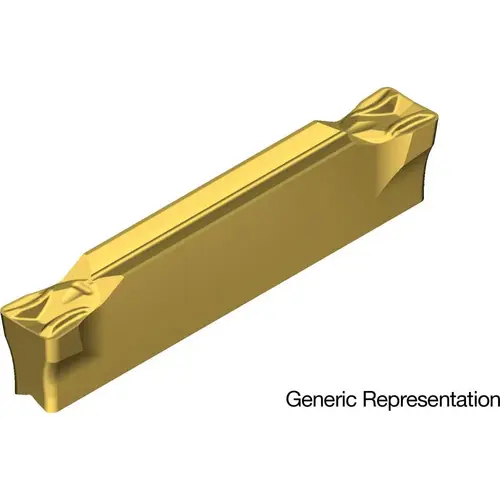

Grooving Insert: GCMN3004MG AC425K, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 186PALV-XCP5 Grooving Insert: GCMN3004MG AC425K, Solid Carbide - pack of 5

Item #: 186PALV-XCP5 by Sumitomo

See reviewsSee reviews
See reviews summary

The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

GCMN3004-MG

Standards

ANSI

Insert Material

Solid Carbide

Series

GND

Coating Process

CVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.0157

Overall Length (Decimal Inch)

0.8310

Overall Width (Decimal Inch - 4 Decimals)

0.1181

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Vendor Drop Ship

Y

Cutting Width (Decimal Inch)

0.1181

Lead Angle

0

Maximum Depth of Cut (Decimal Inch)

0.7500

Multi-use Tool

Yes

Overall Width (mm)

3.00

Rake

Positive

Single Or Double End

Double

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.8310

Rake Angle

5.00

Full Radius

No

Chip Breaker

MG

Insert Style

GCMN

Insert Size Code

3004

Maximum Depth of Cut (mm)

19.05

Cutting Height (Decimal Inch)

0.1500

Minimum Corner Radius (Decimal Inch)

0.0157

Manufacturer Grade

AC425K

Maximum Depth Of Cut Range (Decimal Inch)

0.3000 to 1.0000

Inscribed Circle (mm)

21.11

Insert Seat Size

3

Maximum Depth Of Cut Range (mm)

10.00 to 20.00

Maximum Depth of Cut (Inch)

3/4

Corner Radius (mm)

0.40

Cutting Width (mm)

3.00

Iso Code

ISO 13399

Maximum Corner Radius (Decimal Inch)

0.0157

Cutting Height (mm)

3.81

Product Overview
Grooving Insert: GCMN3004MG AC425K, Solid Carbide Coated, Neutral, 3 mm Cutting Width, 19.05 mm Max Depth, Series GND
