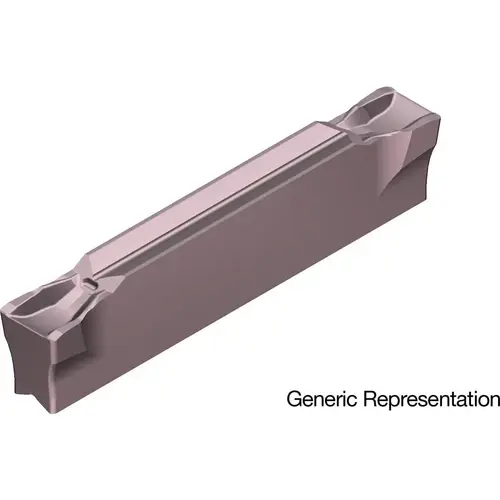

Grooving Insert: GCM4002GG AC530U, Solid Carbide AlCrN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 18HMALM Grooving Insert: GCM4002GG AC530U, Solid Carbide AlCrN

Item #: 18HMALM by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$32.05

/each
SAVE UP TO 3.20
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

GCMN4002-GG

Standards

ANSI

Insert Material

Carbide

Series

GND

Coating Process

PVD

Coating/Finish

AlCrN

Corner Radius (Decimal Inch)

0.0079

Overall Length (Decimal Inch)

1.0394in

Overall Width (Decimal Inch - 4 Decimals)

0.1575in

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

UNSPSC Code

23242105

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1575in

Insert Holding Method

Screw

Multi-use Tool

No

Overall Width (mm)

4.00

Secondary Workpiece Material

Cast Iron

Insert Hand

Neutral

Full Radius

No

Chip Breaker

GG

Secondary Workpiece Material Code

H

Insert Style

GCM

Insert Size Code

4002

Cutting Height (Decimal Inch)

0.1575

Manufacturer Grade

AC530U

Insert Seat Size

4

Corner Radius (mm)

0.20

Cutting Width (mm)

4.00

Iso Code

ISO 13399

Cutting Height (mm)

4.00

Product Overview
Grooving Insert: GCM4002GG AC530U, Solid Carbide AlCrN & TiAlN Finish, Neutral, 0.1575" Cutting Width, Series GND
