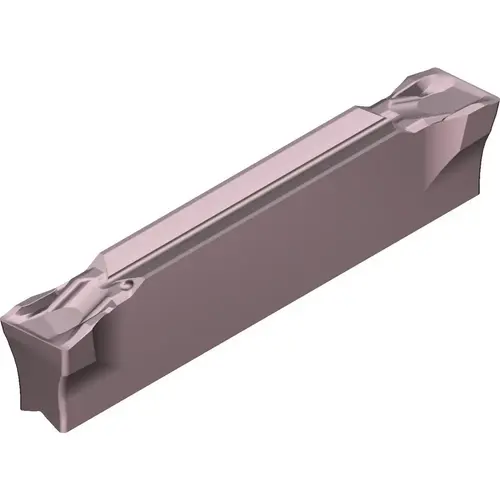

Sumitomo 18HMAMQ Grooving Insert: GCMR3002CG AC530U, Solid Carbide Coated
Item #: 18HMAMQ by Sumitomo
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Code
GCMR3002-CG-05
Standards
ANSI
Insert Material
Solid Carbide
Series
GND
Coating Process
PVD
Coating/Finish
Coated
Corner Radius (Decimal Inch)
0.0079
Overall Length (Decimal Inch)
0.8310
Overall Width (Decimal Inch - 4 Decimals)
0.1181
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Vendor Drop Ship
N
Cutting Width (Decimal Inch)
0.1181
Lead Angle
5
Maximum Depth of Cut (Decimal Inch)
0.7500
Multi-use Tool
No
Overall Width (mm)
3.00
Rake
Positive
Secondary Workpiece Material
Cast Iron
Single Or Double End
Double
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.8310
Rake Angle
5.00
Full Radius
No
Chip Breaker
CG
Secondary Workpiece Material Code
H
Insert Style
GCMR
Insert Size Code
3002
Maximum Depth of Cut (mm)
19.05
Cutting Height (Decimal Inch)
0.1500
Minimum Corner Radius (Decimal Inch)
0.0079
Manufacturer Grade
AC530U
Maximum Depth Of Cut Range (Decimal Inch)
0.3000 to 1.0000
Inscribed Circle (mm)
21.11
Insert Seat Size
4
Maximum Depth Of Cut Range (mm)
10.00 to 20.00
Maximum Depth of Cut (Inch)
3/4
Corner Radius (mm)
0.20
Cutting Width (mm)
3.00
Iso Code
ISO 13399
Maximum Corner Radius (Decimal Inch)
0.0079
Cutting Height (mm)
3.81
Product Overview
Grooving Insert: GCMR3002CG AC530U, Solid Carbide Coated, Right Hand, 3 mm Cutting Width, 19.05 mm Max Depth, Series GND
