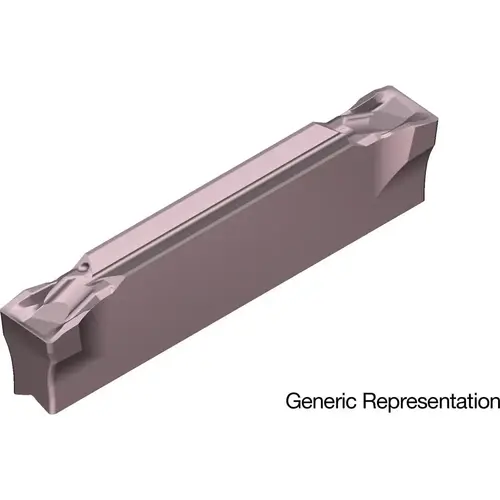

Sumitomo 18HMAMT Grooving Insert: GCML4002CG AC530U, Solid Carbide Coated
Item #: 18HMAMT by Sumitomo
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Code
GCML4002-CG-05
Standards
ANSI
Insert Material
Solid Carbide
Series
GND
Coating Process
PVD
Coating/Finish
Coated
Corner Radius (Decimal Inch)
0.0079
Overall Length (Decimal Inch)
1.0390
Overall Width (Decimal Inch - 4 Decimals)
0.1575
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
Vendor Drop Ship
N
Cutting Width (Decimal Inch)
0.1575
Lead Angle
5
Maximum Depth of Cut (Decimal Inch)
1.0000
Multi-use Tool
No
Overall Width (mm)
4.00
Rake
Positive
Secondary Workpiece Material
Cast Iron
Single Or Double End
Double
Insert Hand
Left Hand
Inscribed Circle (Decimal Inch)
1.0390
Rake Angle
5.00
Full Radius
No
Chip Breaker
CG
Secondary Workpiece Material Code
H
Insert Style
GCML
Insert Size Code
4002
Maximum Depth of Cut (mm)
25.40
Cutting Height (Decimal Inch)
0.1570
Minimum Corner Radius (Decimal Inch)
0.0079
Manufacturer Grade
AC530U
Maximum Depth Of Cut Range (Decimal Inch)
1.0000+
Inscribed Circle (mm)
26.39
Insert Seat Size
4
Maximum Depth Of Cut Range (mm)
20.00+
Maximum Depth of Cut (Inch)
1
Corner Radius (mm)
0.20
Cutting Width (mm)
4.00
Iso Code
ISO 13399
Maximum Corner Radius (Decimal Inch)
0.0079
Cutting Height (mm)
3.99
Product Overview
Grooving Insert: GCML4002CG AC530U, Solid Carbide Coated, Left Hand, 4 mm Cutting Width, 25.4 mm Max Depth, Series GND
