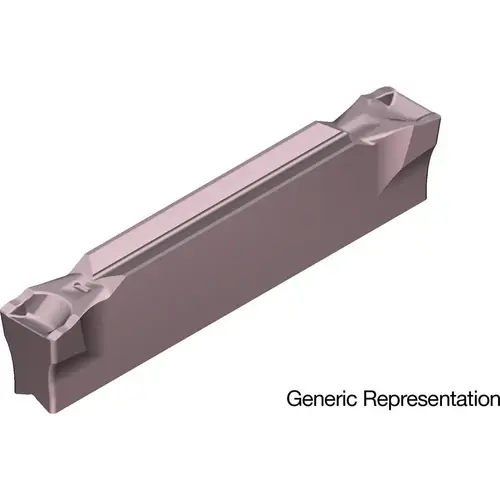

Grooving Insert: GCMN6250GL AC520U, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 18HWW13 Grooving Insert: GCMN6250GL AC520U, Solid Carbide Coated

Item #: 18HWW13 by Sumitomo

See reviewsSee reviews
See reviews summary

$34.50

/each
SAVE UP TO 3.45
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Height (mm)

4.50

Maximum Corner Radius (Decimal Inch)

0.0079

Iso Code

ISO 13399

Cutting Width (mm)

6.35

Corner Radius (mm)

0.20

Maximum Depth of Cut (Inch)

1

Maximum Depth Of Cut Range (mm)

20.00+

Insert Seat Size

6

Inscribed Circle (mm)

26.39

Maximum Depth Of Cut Range (Decimal Inch)

1.0000+

Manufacturer Grade

AC520U

Minimum Corner Radius (Decimal Inch)

0.0079

Cutting Height (Decimal Inch)

0.1770

Maximum Depth of Cut (mm)

25.40

Insert Size Code

6250

Insert Style

GCMN

Chip Breaker

GL

Full Radius

No

Rake Angle

5.00

Inscribed Circle (Decimal Inch)

1.0390

Insert Hand

Neutral

Single Or Double End

Double

Rake

Positive

Overall Width (mm)

6.35

Multi-use Tool

No

Maximum Depth of Cut (Decimal Inch)

1.0000

Lead Angle

0

Cutting Width (Inch)

1/4

Cutting Width (Decimal Inch)

0.2500

Vendor Drop Ship

Y

Primary Workpiece Material Code

K

Primary Workpiece Material

Universal

Overall Width (Inch)

1/4

Overall Width (Decimal Inch - 4 Decimals)

0.2500

Overall Length (Decimal Inch)

1.0390

Corner Radius (Decimal Inch)

0.0079

Coating/Finish

Coated

Coating Process

PVD

Series

GND

Insert Material

Solid Carbide

Standards

ANSI

ANSI Code

GCMN6250R0.5-GL

Product Overview
Grooving Insert: GCMN6250GL AC520U, Solid Carbide Coated, Neutral, 6.35 mm Cutting Width, 25.4 mm Max Depth, Series GND
