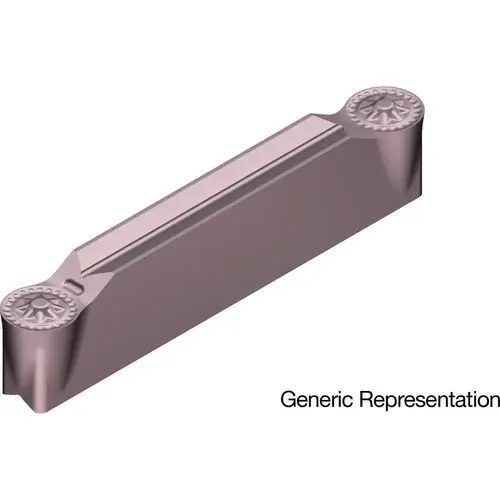

Grooving Insert: GCMN6250RG AC520U, Solid Carbide - pack of 5

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 18HWW17-XCP5 Grooving Insert: GCMN6250RG AC520U, Solid Carbide - pack of 5

Item #: 18HWW17-XCP5 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$172.48

/package
SAVE UP TO 17.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 11 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Height (mm)

4.50

Iso Code

ISO 13399

Cutting Width (mm)

6.35

Corner Radius (mm)

3.18

Maximum Depth of Cut (Inch)

1

Maximum Depth Of Cut Range (mm)

20.00+

Inscribed Circle (mm)

26.39

Maximum Depth Of Cut Range (Decimal Inch)

1.0000+

Manufacturer Grade

AC520U

Cutting Height (Decimal Inch)

0.1770

Maximum Depth of Cut (mm)

25.40

Insert Size Code

6250

Insert Style

GCMN

Chip Breaker

RG

Full Radius

Yes

Rake Angle

5.00

Corner Radius (Inch)

1/8

Inscribed Circle (Decimal Inch)

1.0390

Insert Hand

Neutral

Rake

Positive

Overall Width (mm)

6.35

Multi-use Tool

Yes

Maximum Depth of Cut (Decimal Inch)

1.0000

Lead Angle

0degree

Cutting Width (Inch)

1/4in

Cutting Width (Decimal Inch)

0.2500in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

K

Primary Workpiece Material

Universal

Overall Width (Inch)

1/4in

Overall Width (Decimal Inch - 4 Decimals)

0.2500in

Overall Length (Decimal Inch)

1.0390in

Coating Process

PVD

Series

GND

Insert Material

Carbide

Standards

ANSI

ANSI Code

GCMN6250-RG

Product Overview
Grooving Insert: GCMN6250RG AC520U, Solid Carbide Coated, Neutral, 6.35 mm Cutting Width, 25.4 mm Max Depth, Series GND
