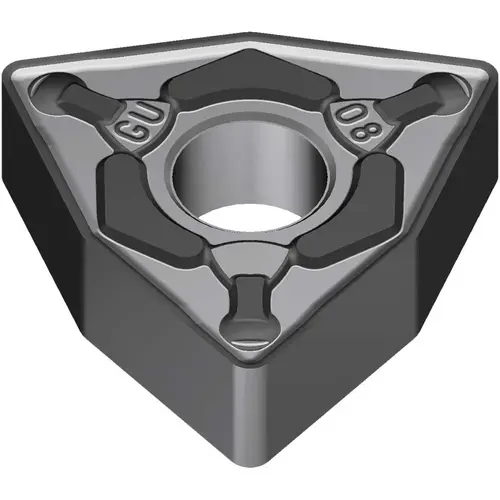

Sumitomo 196C155 Turning Insert: WNMG431EGU AC6030M, Solid Carbide Coated

Item #: 196C155 by Sumitomo

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$16.54

/each
SAVE UP TO 1.65
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 80 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

WNMG431EGU

Standards

ANSI

Included Angle

80.0

Insert Material

Solid Carbide

Series

TN

Coating Process

CVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.0156

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3425

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

Trigon

Clearance Code

N

Insert Shape Code

W

Chip Breaker

EGU

Insert Style

WNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC6030M

Iso Code

WNMG080404N-GU

Product Overview
Turning Insert: WNMG431EGU AC6030M, Solid Carbide Coated, Neutral, 0.3425" Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Trigon, Series TN
