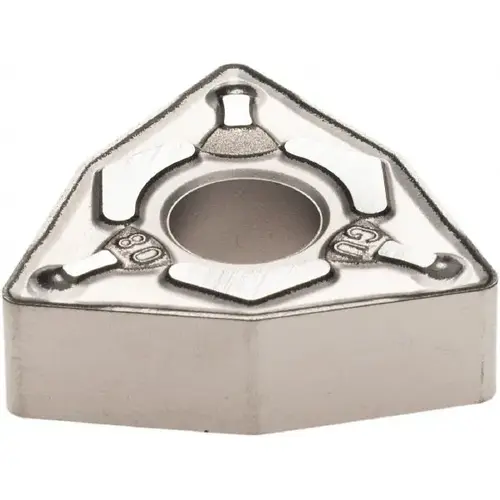

Sumitomo 196C337 Turning Insert: WNMG432EGU AC6030M, Solid Carbide Coated
Item #: 196C337 by Sumitomo
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ANSI
Included Angle
80
Insert Material
Carbide
Series
TN
Side Clearance
Negative
Coating Process
CVD
Coating/Finish
Coated
Corner Radius (Decimal Inch)
0.0313
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.3425
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Rake
Negative
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.5000
Corner Radius (Inch)
1/32
Insert Shape
W - Trigon 80-Deg
Clearance Code
N
Insert Shape Code
W
Chip Breaker
EGU
Insert Style
WNMG
Insert Size Code
432
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.2031
Relief Angle
0
Inscribed Circle (Inch)
1/2
Chip Breaker Operation
Light Machining
Manufacturer Grade
AC6030M
ISO Size Code
080402
Grade Characteristics
Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
ANSI Size Code
432
ISO Insert Code
WNMG080402
Iso Code
WNMG080408N-GU
ANSI Insert Code
WNMG432
Product Overview
Turning Insert: WNMG432EGU AC6030M, Solid Carbide Coated, Neutral, 0.3425" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series TN
