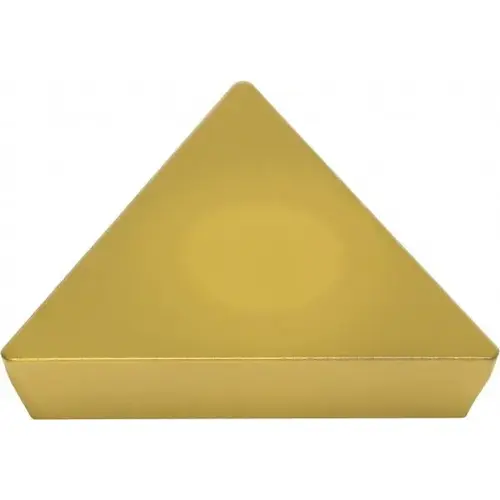

TPMN432 AC700G Carbide Turning Insert TiC

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19DY405 TPMN432 AC700G Carbide Turning Insert TiC

Item #: 19DY405 by Sumitomo

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$25.67

/each
SAVE UP TO 2.57
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 272 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

TPMN432

Standards

ANSI

Included Angle

60.0

Insert Material

Solid Carbide

Series

TP

Coating Process

CVD

Coating/Finish

TiC

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.8661

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Positive

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Clearance Code

P

Insert Shape Code

T

Chip Breaker

N

Insert Style

TPMN

Insert Size Code

432

Tolerance Code

M

Relief Angle

11

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC700G

Iso Code

TPMN220408

Product Overview
TPMN432 AC700G Carbide Turning Insert TiC Finish, 1/2" Inscribed Circle, 1/32" Corner Radius, 60 degree Triangle
