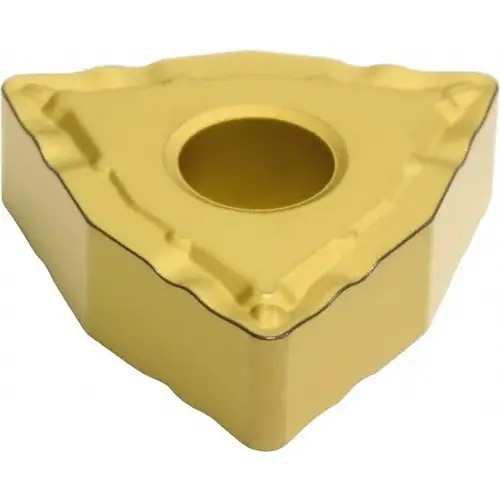

Sumitomo 19DYBFB WNMG433ESX AC700G Carbide Turning Insert TiC

Item #: 19DYBFB by Sumitomo

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$16.54

/each
SAVE UP TO 1.65
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 60 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

WNMG080412N-SX

Manufacturer Grade

AC700G

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2031

Tolerance Code

M

Insert Size Code

433

Insert Style

WNMG

Chip Breaker

ESX

Insert Shape Code

W

Rake Angle

3

Clearance Code

N

Insert Shape

Trigon

Corner Radius (Inch)

3/64

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Neutral

Rake

Positive

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.3425

Insert Holding Method

Clamp

Vendor Drop Ship

N

Primary Workpiece Material Code

K

Primary Workpiece Material

Cast Iron

Corner Radius (Decimal Inch)

0.0469

Coating/Finish

TiC

Coating Process

CVD

Series

TN

Insert Material

Solid Carbide

Included Angle

80.0

Standards

ANSI

ANSI Code

WNMG433ESX

Product Overview
WNMG433ESX AC700G Carbide Turning Insert TiC Finish, 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Trigon
