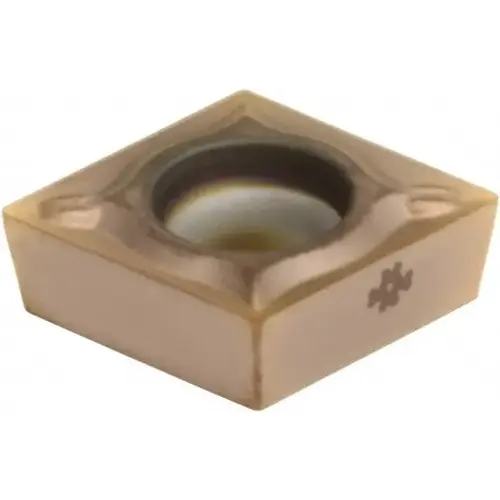

Sumitomo 19HMBPEClick To Copy CCMT32.51ESU AC530U Carbide Turning Insert
Item #: 19HMBPE by Sumitomo
See reviewsSee reviews
In Stock
$13.08
/eachSAVE UP TO 1.31
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 190 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
Diamond
Clearance Code
C
ANSI Code
CCMT32.51ESU
Standards
ANSI
Included Angle
80.0
Insert Material
Solid Carbide
Series
CC
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0156
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.3819
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Rake
Positive
Rake Angle
8
Insert Shape Code
C
Chip Breaker
ESU
Secondary Workpiece Material Code
M
Insert Style
CCMT
Insert Size Code
32.51
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1732
Relief Angle
7
Inscribed Circle (Inch)
3/8
Manufacturer Grade
AC530U
Proprietary Coating Designation
Super ZX
Iso Code
CCMT09T304N-SU
Product Overview
CCMT32.51ESU AC530U Carbide Turning Insert TiAlN/AlCrN Finish, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond
