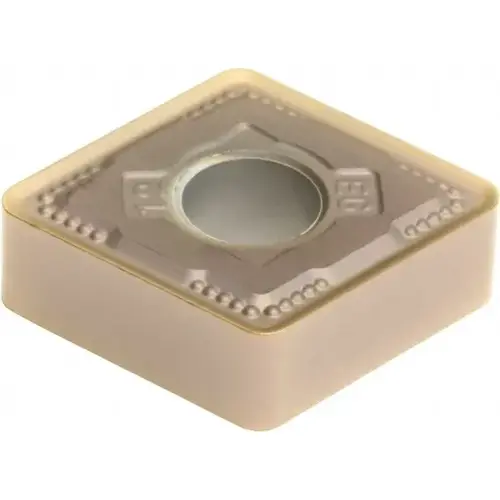

Sumitomo 19HWCFY Turning Insert: CNMG432EEG AC520U, Solid Carbide TiAlN

Item #: 19HWCFY by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$17.71

/each
SAVE UP TO 1.77
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1787 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

CNMG432EEG

Standards

ANSI

Included Angle

80.0

Insert Material

Solid Carbide

Series

CN

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0313

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Neutral

Secondary Workpiece Material

Stainless Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Rake Angle

0

Insert Shape Code

C

Chip Breaker

EEG

Secondary Workpiece Material Code

M

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC520U

Proprietary Coating Designation

Super ZX

Iso Code

CNMG120408N-EG

Product Overview
Turning Insert: CNMG432EEG AC520U, Solid Carbide TiAlN & AlCrN Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CN
