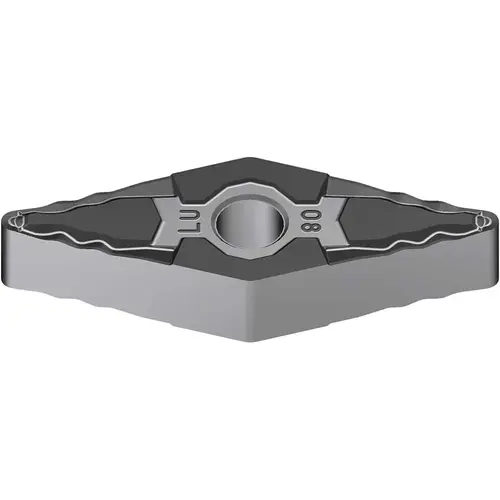

Turning Insert: VNMG332ELU AC8025P, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19P7BUJ Turning Insert: VNMG332ELU AC8025P, Solid Carbide Coated

Item #: 19P7BUJ by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$25.86

/each
SAVE UP TO 2.59
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Hole Diameter (Decimal Inch)

0.1500

Standards

ANSI

Included Angle

35

Insert Material

Carbide

Series

VN

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.0313

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.6535

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Multi-use Tool

No

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

V - Diamond (Rhombic) 35-Deg

Clearance Code

N

Full Radius

No

Insert Shape Code

V

Chip Breaker

ELU

Insert Style

VNMG

Insert Size Code

332

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

3/8

Chip Breaker Operation

Finishing

Manufacturer Grade

AC8025P

ISO Size Code

160408

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

332

ISO Insert Code

VNMG160408

Iso Code

VNMG160408N-LU

ANSI Insert Code

VNMG332

Product Overview
Turning Insert: VNMG332ELU AC8025P, Solid Carbide Coated, Neutral, 0.6535" Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 35 degree Diamond, Series VN
