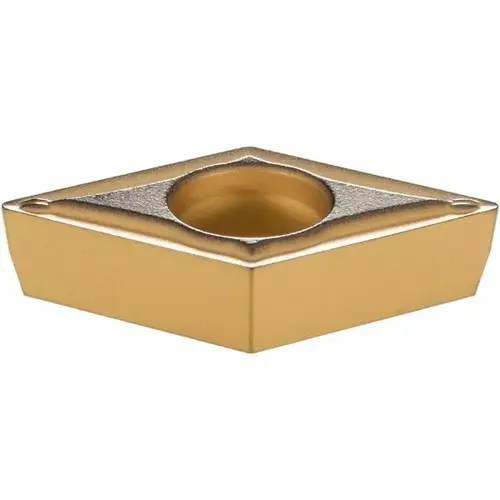

Sumitomo 19PWBPK-XCP10 Turning Insert: DCMT32.51ESU AC630M, Solid Carbide - pack of 10
Item #: 19PWBPK-XCP10 by Sumitomo
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ANSI
Included Angle
55
Insert Material
Carbide
Series
DC
Side Clearance
Positive
Coating Process
CVD
Coating/Finish
Al2O3
Corner Radius (Decimal Inch)
0.0156
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.4567
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Rake
Positive
Secondary Workpiece Material
Stainless Steel
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
D - Diamond (Rhombic) 55-Deg
Clearance Code
C
Rake Angle
8
Insert Shape Code
D
Chip Breaker
ESU
Secondary Workpiece Material Code
M
Insert Style
DCMT
Insert Size Code
32.51
Tolerance Code
M
Hole Diameter (Decimal Inch)
0.1732
Relief Angle
7
Inscribed Circle (Inch)
3/8
Chip Breaker Operation
Finishing
Manufacturer Grade
AC630M
ISO Size Code
11T304
Grade Characteristics
Stainless Steel (M) - Moderate Wear-Resistance and Toughness
ANSI Size Code
32.51
ISO Insert Code
DCMT11T304
Iso Code
DCMT11T304N-SU
ANSI Insert Code
DCMT32.51
Product Overview
Turning Insert: DCMT32.51ESU AC630M, Solid Carbide Al2O3 Coated, Neutral, 0.4567" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, 55 degree Diamond, Series DC
