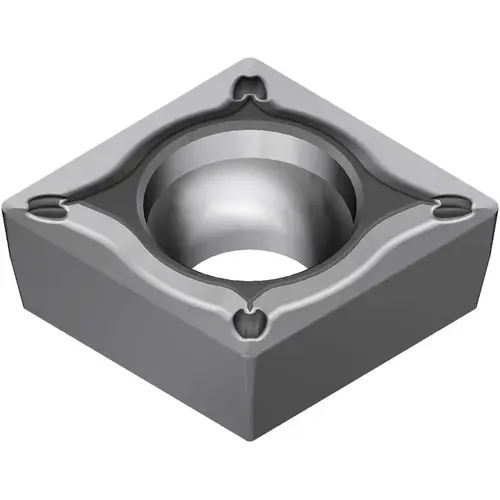

Sumitomo 19R5BPE CCMT32.51ESU AC6020M Carbide Turning Insert Absotech Platinum
Item #: 19R5BPE by Sumitomo
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Standards
ANSI
Included Angle
80
Insert Material
Carbide
Series
CC
Side Clearance
Positive
Coating Process
CVD
Coating/Finish
Absotech Platinum
Corner Radius (Decimal Inch)
0.1560
Manufacturers Catalog Number
CCMT32.51ESU-AC6020M
Material Grade
M20
Primary Workpiece Material
Stainless Steel
Primary Workpiece Material Code
M
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Pin
Insert Length (Decimal Inch)
0.3819
Insert Thickness (Decimal Inch)
0.1563
Insert Thickness (Inch)
5/32
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
C - Diamond (Rhombic) 80-Deg
Clearance Code
C
Rake Angle
8
Full Radius
No
Insert Shape Code
C
Chip Breaker
ESU
Insert Style
CCMT
Insert Size Code
32.51
Tolerance Code
M
Relief Angle
7
Inscribed Circle (Inch)
3/8
Hole Diameter (Mm) ( - 0 Decimals)
4.40
Chip Breaker Operation
Finishing
Manufacturer Grade
AC6020M
ISO Size Code
09T304
Grade Characteristics
Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
ANSI Size Code
32.51
Proprietary Coating Designation
Absotech Platinum
Iso Code
CCMT09T304N-SU
Product Overview
CCMT32.51ESU AC6020M Carbide Turning Insert Absotech Platinum Finish, Neutral, 3/8" Inscribed Circle, 1/64" Corner Radius, 80 degree Diamond
