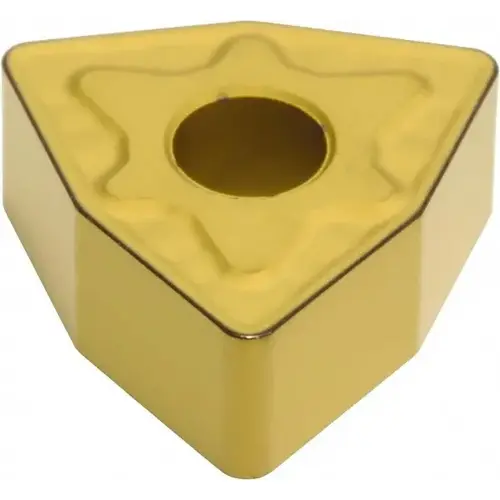

Turning Insert: WNMG432EME AC830P, Solid Carbide Al2O3

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19RBCEM Turning Insert: WNMG432EME AC830P, Solid Carbide Al2O3

Item #: 19RBCEM by Sumitomo

See reviewsSee reviews
See reviews summary

$16.54

/each
SAVE UP TO 1.65
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

WNMG080408N-ME

Manufacturer Grade

AC830P

Inscribed Circle (Inch)

1/2

Relief Angle

0

Hole Diameter (Decimal Inch)

0.2031

Tolerance Code

M

Insert Size Code

432

Insert Style

WNMG

Secondary Workpiece Material Code

M

Chip Breaker

EME

Insert Shape Code

W

Rake Angle

3

Clearance Code

N

Insert Shape

Trigon

Corner Radius (Inch)

1/32

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Neutral

Secondary Workpiece Material

Universal

Rake

Positive

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.3425

Insert Holding Method

Clamp

Vendor Drop Ship

Y

Corner Radius (Decimal Inch)

0.0313

Coating/Finish

Al2O3

Coating Process

CVD

Series

TN

Insert Material

Solid Carbide

Included Angle

80.0

Standards

ANSI

ANSI Code

WNMG432EME

Product Overview
Turning Insert: WNMG432EME AC830P, Solid Carbide Al2O3 Coated, Neutral, 0.3425" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon, Series TN
