Sumitomo 19RJ796 Turning Insert: CNMG432ENG AC820P, Solid Carbide Absotech

Item #: 19RJ796 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$19.50

/each
SAVE UP TO 1.95
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 965 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

CN

Side Clearance

Negative

Coating Process

CVD

Coating/Finish

Absotech

Corner Radius (Decimal Inch)

0.0313

Material Grade

C5A

Primary Workpiece Material Code

P

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Insert Shape Code

C

Chip Breaker

ENG

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Chip Breaker Operation

Roughing

Manufacturer Grade

AC820P

ISO Size Code

120408

Grade Characteristics

Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

432

Inscribed Circle (mm)

12.70

ISO Insert Code

CNMG120408

Iso Code

CNMG120408N-UG

ANSI Insert Code

CNMG432

Product Overview

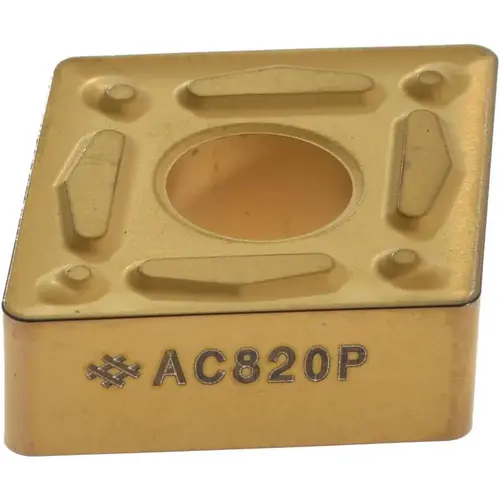

Turning Insert: CNMG432ENG AC820P, Solid Carbide Absotech Coated, Neutral, 0.5079" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CN
