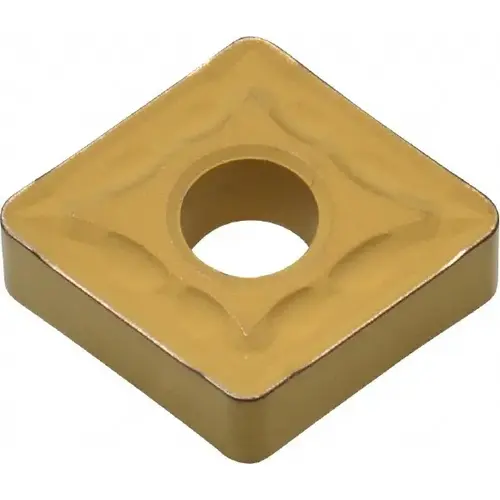

CNMG433EMU AC820P Carbide Turning Insert Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19RJAFJ CNMG433EMU AC820P Carbide Turning Insert Coated

Item #: 19RJAFJ by Sumitomo

See reviewsSee reviews
See reviews summary

$16.54

/each
SAVE UP TO 1.65
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

CNMG433EMU

Standards

ANSI

Included Angle

80.0

Insert Material

Solid Carbide

Series

CN

Coating Process

CVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.0469

Material Grade

C5A

Primary Workpiece Material

M

Primary Workpiece Material Code

M

Vendor Drop Ship

Y

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

3/64

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

EMU

Secondary Workpiece Material Code

P

Insert Style

CNMG

Insert Size Code

433

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC820P

Inscribed Circle (mm)

12.70

Iso Code

CNMG120412N-MU

Product Overview
CNMG433EMU AC820P Carbide Turning Insert 1/2" Inscribed Circle, 3/64" Corner Radius, 80 degree Diamond
