Sumitomo 19RJAPF-XCP10 Turning Insert: WNMG431ESU AC820P, Solid Carbide - pack of 10

Item #: 19RJAPF-XCP10 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$194.95

/package
SAVE UP TO 19.49
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

WNMG431ESU

Standards

ANSI

Included Angle

80.0

Insert Material

Solid Carbide

Series

TN

Coating Process

CVD

Coating/Finish

Coated

Corner Radius (Decimal Inch)

0.0156

Material Grade

C5A

Primary Workpiece Material

M

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3425

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Negative

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/64

Insert Shape

Trigon

Clearance Code

N

Insert Shape Code

W

Chip Breaker

ESU

Secondary Workpiece Material Code

P

Insert Style

WNMG

Insert Size Code

431

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2030

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

AC820P

Inscribed Circle (mm)

12.70

Iso Code

WNMG080404N-SU

Product Overview

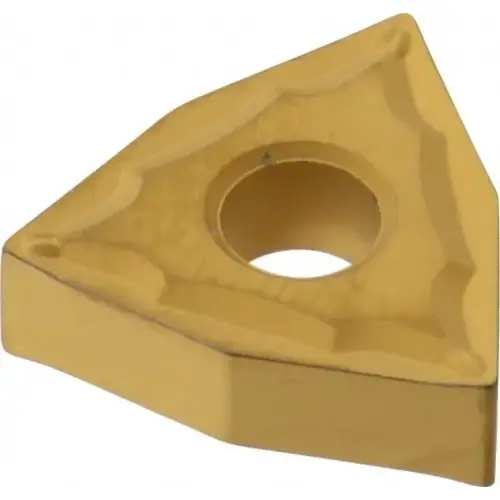

Turning Insert: WNMG431ESU AC820P, Solid Carbide Coated, Neutral, 0.3425" Long, 1/2" Inscribed Circle, 1/64" Corner Radius, 80 degree Trigon, Series TN
