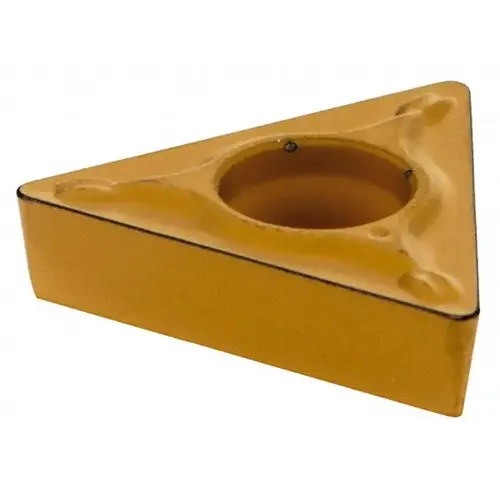

Sumitomo 19RJBPR-XCP10 Turning Insert: TCMT21.51ESU AC820P, Solid Carbide - pack of 10

Item #: 19RJBPR-XCP10 by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$172.30

/package
SAVE UP TO 17.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 20 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

TCMT21.51ESU

Standards

ANSI

Included Angle

60.0

Insert Material

Solid Carbide

Series

TC

Coating Process

CVD

Coating/Finish

Al2O3

Corner Radius (Decimal Inch)

0.0156

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.4331

Insert Thickness (Inch)

3/32

Rake

Positive

Secondary Workpiece Material

Steel

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.2500

Corner Radius (Inch)

1/64

Insert Shape

Triangle

Clearance Code

C

Rake Angle

8

Insert Shape Code

T

Chip Breaker

ESU

Secondary Workpiece Material Code

P

Insert Style

TCMT

Insert Size Code

21.51

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1100

Relief Angle

7

Inscribed Circle (Inch)

1/4

Manufacturer Grade

AC820P

Iso Code

TCMT110204N-SU

Product Overview
Turning Insert: TCMT21.51ESU AC820P, Solid Carbide Al2O3 Coated, Neutral, 0.4331" Long, 1/4" Inscribed Circle, 1/64" Corner Radius, 60 degree Triangle, Series TC
