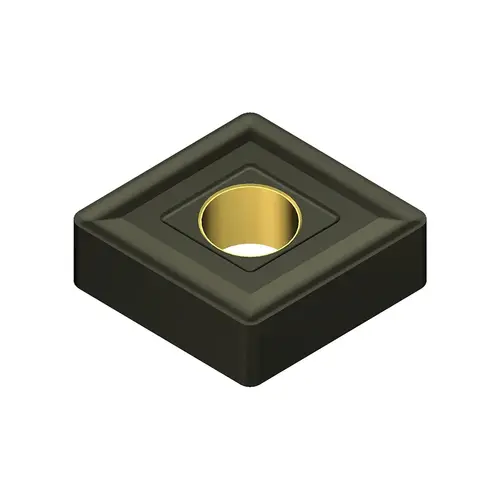

CNMG432EGZ AC4010K Carbide Turning Insert - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19T1CAB-XCP10 CNMG432EGZ AC4010K Carbide Turning Insert - pack of 10

Item #: 19T1CAB-XCP10 by Sumitomo

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$173.71

/package
SAVE UP TO 17.37
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Insert Thickness (Decimal Inch)

0.1875

Vendor Drop Ship

N

Iso Code

CNMG120408N-GZ

Grade Characteristics

Cast Iron (K) - High Wear-Resistance

Relief Angle

0

Clearance Code

N

Rake

Negative

Material Grade

K10

Insert Length (Decimal Inch)

0.5079

Insert Holding Method

Pin

Coating/Finish

Al2O3

Rake Angle

0

UNSPSC Code

23242105

Corner Radius (Inch)

1/32

Insert Style

CNMG

Manufacturers Catalog Number

CNMG432EGZ-AC4010K

ANSI Size Code

432

Insert Hand

Neutral

Proprietary Coating Designation

Super FF

Manufacturer Grade

AC4010K

Inscribed Circle (Inch)

1/2

Standards

ANSI

Inscribed Circle (Decimal Inch)

0.5000

Coating Process

CVD

Primary Workpiece Material

Cast Iron

Insert Shape Code

C

Corner Radius (Decimal Inch)

0.0313

Insert Thickness (Inch)

3/16

Chip Breaker

EGZ

Multi-use Tool

Yes

Full Radius

No

Tolerance Code

M

ISO Size Code

120408

Insert Size Code

432

Included Angle

80

Series

CN

Hole Diameter (Mm) ( - 0 Decimals)

5.16

Insert Shape

C - Diamond (Rhombic) 80-Deg

Chip Breaker Operation

Roughing

Primary Workpiece Material Code

K

Product Overview
CNMG432EGZ AC4010K Carbide Turning Insert Al2O3/TiCN Finish, Neutral, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond
