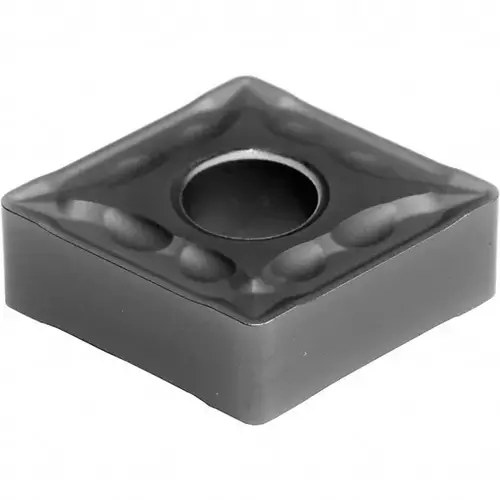

CNMG643EMU-AC5025S Carbide Turning Insert TiAlSiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19T6AFN CNMG643EMU-AC5025S Carbide Turning Insert TiAlSiN

Item #: 19T6AFN by Sumitomo

See reviewsSee reviews
See reviews summary

$34.12

/each
SAVE UP TO 3.41
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

AC5000S

Coating Process

PVD

Coating/Finish

TiAlSiN

Corner Radius (Decimal Inch)

0.0469

Manufacturers Catalog Number

CNMG643EMUAC5025S

Material Grade

S20

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.7598

Insert Thickness (Decimal Inch)

0.2500

Insert Thickness (Inch)

1/4

Rake

Negative

Insert Hand

Neutral

Insert Shape

Diamond

Clearance Code

N

Rake Angle

4

Full Radius

No

Insert Shape Code

C

Chip Breaker

EMU

Insert Style

CNMG

Insert Size Code

643

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.3126

Relief Angle

0

Inscribed Circle (Inch)

3/4

Manufacturer Grade

AC5025S

Proprietary Coating Designation

Absotech Bronze

Iso Code

CNMG190612N-MU

Product Overview
CNMG643EMU-AC5025S Carbide Turning Insert TiAlSiN Finish, Neutral, 3/4" Inscribed Circle, 0.0469" Corner Radius, 1/4" Thick, 80 degree Diamond, Series AC5000S
