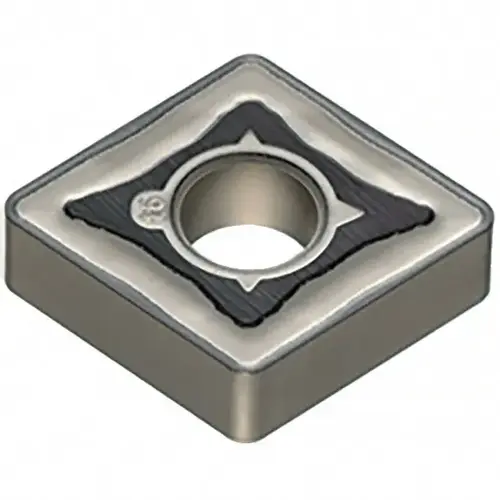

CNMG432EEM-AC5025S Carbide Turning Insert TiAlSiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Sumitomo 19T6CNB CNMG432EEM-AC5025S Carbide Turning Insert TiAlSiN

Item #: 19T6CNB by Sumitomo

See reviewsSee reviews
See reviews summary
In Stock

$20.58

/each
SAVE UP TO 2.06
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Standards

ANSI

Included Angle

80

Insert Material

Carbide

Series

AC5000S

Side Clearance

Negative

Coating Process

PVD

Coating/Finish

TiAlSiN

Corner Radius (Decimal Inch)

0.0313

Manufacturers Catalog Number

CNMG432EEM-AC5025S

Material Grade

S20

Primary Workpiece Material

Superalloy

Primary Workpiece Material Code

S

UNSPSC Code

23242105

Vendor Drop Ship

N

Insert Holding Method

Screw

Insert Length (Decimal Inch)

0.5079

Insert Thickness (Decimal Inch)

0.1875

Insert Thickness (Inch)

3/16

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

C - Diamond (Rhombic) 80-Deg

Clearance Code

N

Rake Angle

0

Full Radius

No

Insert Shape Code

C

Chip Breaker

EEM

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.2031

Relief Angle

0

Inscribed Circle (Inch)

1/2

Chip Breaker Operation

Roughing

Manufacturer Grade

AC5025S

ISO Size Code

120408

Grade Characteristics

Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness

ANSI Size Code

432

ISO Insert Code

CNMG120408

Proprietary Coating Designation

Absotech Bronze

Iso Code

CNMG120408N-EM

ANSI Insert Code

CNMG432

Product Overview
CNMG432EEM-AC5025S Carbide Turning Insert TiAlSiN Finish, Neutral, 1/2" Inscribed Circle, 0.0313" Corner Radius, 3/16" Thick, 80 degree Diamond, Series AC5000S
