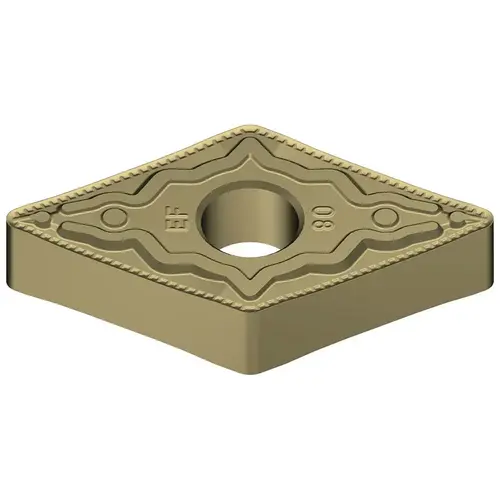

Sumitomo 19W1CGQ DNMG431EEF AC8020P Carbide Turning Insert Absotech
Item #: 19W1CGQ by Sumitomo
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Included Angle
55
Insert Material
Carbide
Series
AC8020P
Side Clearance
Negative
Coating Process
CVD
Coating/Finish
Absotech
Corner Radius (Decimal Inch)
0.0157
Manufacturers Catalog Number
DNMG431EEF-AC8020P
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Insert Holding Method
Clamp
Insert Length (Decimal Inch)
0.6102
Insert Thickness (Decimal Inch)
0.1874
Rake
Negative
Secondary Workpiece Material
Steel
Inscribed Circle (Decimal Inch)
0.5000
Insert Shape
D - Diamond (Rhombic) 55-Deg
Clearance Code
N
Insert Shape Code
D
Chip Breaker
EEF
Insert Style
DNMG
Insert Size Code
431
Tolerance Code
M
Relief Angle
0
Inscribed Circle (Inch)
1/2
Chip Breaker Operation
Finishing
Manufacturer Grade
AC8020P
ISO Size Code
150404
Grade Characteristics
Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Length Range (Decimal Inch)
0.6000 - 0.6500
ANSI Size Code
431
ISO Insert Code
DNMG150404
Iso Code
DNMG150404N-EF
ANSI Insert Code
DNMG431
Product Overview
DNMG431EEF AC8020P Carbide Turning Insert Absotech Finish, 0.6102" Long, 1/2" Inscribed Circle, 0.0157" Corner Radius, 0.1874" Thick, Series AC8020P
