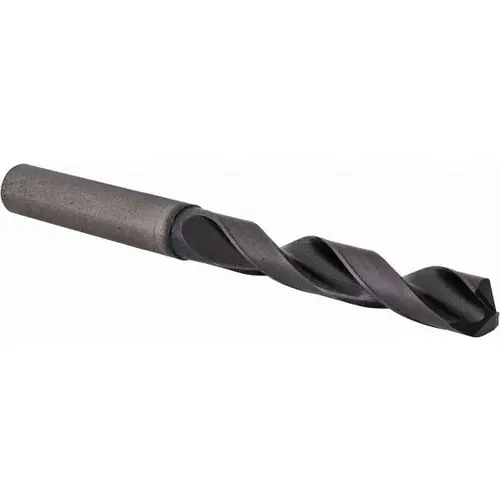

Sumitomo 5UHY207 Jobber Length Drill Bit: 8.5 mm Dia, 135 degree, Solid Carbide

Item #: 5UHY207 by Sumitomo

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$172.55

/each
SAVE UP TO 17.25
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Overall Length (mm)

98.00

Number of Flutes

2

Series

MDW-GS

Drill Bit Material

Solid Carbide

Tool Application

Metal Cutting

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.3346

Drill Bit Size (mm)

8.50

Drill Bit Size Range (Decimal Inch)

0.3000 - 0.3500

Drill Point Angle

135 degrees

Flute By Diameter Ratio

4xD

Flute Length (Decimal Inch)

2.0866

Flute Length (mm)

53.00

Overall Length (Decimal Inch)

3.8583

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.3543

Shank Diameter (mm)

9.00

Shank Length (mm)

43.00

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

h8

Drill Bit Finish/Coating

TiAlCr

Drill Bit Size Range (mm)

8.00 - 9.00

Web Configuration

Tapered

Drill Point Length (mm)

1.76

Drill Point Length (Decimal Inch)

0.0693

Product Overview
Jobber Length Drill Bit: 8.5 mm Dia, 135 degree, Solid Carbide TiAlCr/TiSi Coated, 98 mm OAL, Straight-Cylindrical Shank, Series MDW-GS
