Features
Cutting Edge Style
Honed
Material Application
Steel
Length (mm)
15.88
ANSI Code
EM15070ET520
Number of Cutting Edges
2
Thickness (mm)
3.18
Insert Material
Solid Carbide
Series
EM
Coating Process
PVD
Coating/Finish
AlTiN
Length (Decimal Inch - 4 Decimals)
0.6250
Length (Inch)
5/8
Manufacturers Catalog Number
EM15070
Material Grade
C5
Primary Workpiece Material
Steel
Convex Radius (Decimal Inch)
0.0700
Inscribed Circle (mm)
9.53
Thickness Range (Decimal Inch)
0.1250 to 0.1500
Length Range (Decimal Inch)
0.6000 to 0.6500
Cutter Series Compatibility
BE
Single or Double Sided Insert
Double
Manufacturer Grade
ET520
Inscribed Circle (Inch)
3/8
Insert Size Code
15070
Insert Style
EM
Chip Breaker
None
Insert Shape
Parallelogram
Inscribed Circle (Decimal Inch)
0.3750
Insert Hand
Right Hand
Rake
Positive
Multi-use Tool
Yes
Insert Holding Method
Screw
Coating Classification
PVD
Width (mm - 2 Decimals)
9.53
Width (Inch)
3/8
Width (Decimal Inch - 4 Decimals)
0.3750
Vendor Drop Ship
N
UNSPSC Code
23291601
Thickness (Inch)
1/8
Thickness (Decimal Inch - 4 Decimals)
0.1250
Primary Workpiece Material Code
P
Product Overview

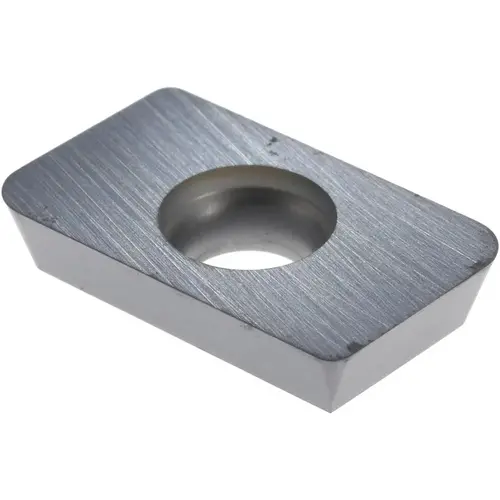

Milling Insert: ET520, Solid Carbide Coated, 1/8" Thick, 3/8" Wide
