Milling Insert: ET520, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

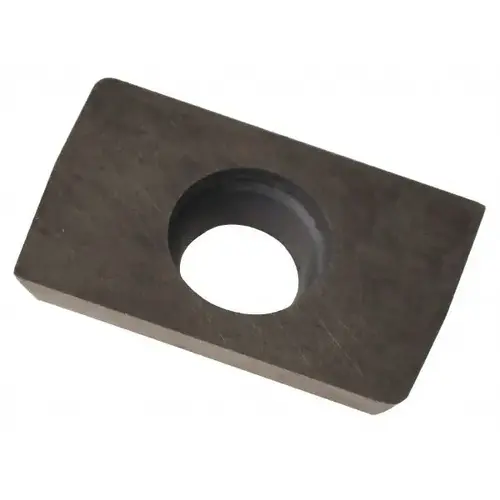

Superbee EM15170ET520-XCP10 Milling Insert: ET520, Solid Carbide - pack of 10

Item #: EM15170ET520-XCP10 by Superbee

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
HURRY! Low in stock

$481.95

/package
SAVE UP TO 48.19
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Number of Cutting Edges

2

ANSI Code

EM15170ET520

Length (mm)

15.88

Material Application

Steel

Cutting Edge Style

Honed

Convex Radius (Decimal Inch)

0.1700

Inscribed Circle (mm)

9.53

Thickness Range (Decimal Inch)

0.1250 to 0.1500

Length Range (Decimal Inch)

0.6000 to 0.6500

Cutter Series Compatibility

BE

Single or Double Sided Insert

Double

Manufacturer Grade

ET520

Inscribed Circle (Inch)

3/8

Insert Size Code

15170

Insert Style

EM

Chip Breaker

None

Insert Shape

Parallelogram

Inscribed Circle (Decimal Inch)

0.3750

Insert Hand

Right Hand

Rake

Positive

Multi-use Tool

Yes

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

9.53

Width (Inch)

3/8

Width (Decimal Inch - 4 Decimals)

0.3750

Vendor Drop Ship

N

Thickness (Inch)

1/8

Thickness (Decimal Inch - 4 Decimals)

0.1250

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C5

Manufacturers Catalog Number

EM15170

Length (Inch)

5/8

Length (Decimal Inch - 4 Decimals)

0.6250

Coating/Finish

AlTiN

Coating Process

PVD

Series

EM

Insert Material

Solid Carbide

Thickness (mm)

3.18

Product Overview
Milling Insert: ET520, Solid Carbide AlTiN Coated, 1/8" Thick, 3/8" Wide
