Milling Insert: ET520, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

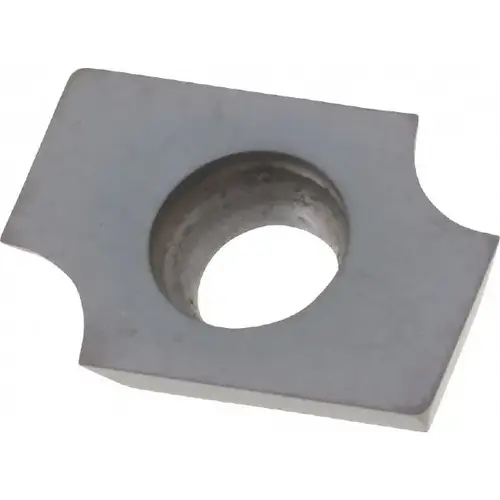

Superbee EM19C160ET520 Milling Insert: ET520, Solid Carbide AlTiN

Item #: EM19C160ET520 by Superbee

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$98.64

/each
SAVE UP TO 9.86
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Concave Radius (Decimal Inch)

0.1600

Inscribed Circle (mm)

12.70

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Length Range (Decimal Inch)

0.7000 to 0.9000

Cutter Series Compatibility

BE

Single or Double Sided Insert

Double

Manufacturer Grade

ET520

Inscribed Circle (Inch)

1/2

Insert Size Code

19C160

Insert Style

EM

Chip Breaker

None

Insert Shape

Parallelogram

Inscribed Circle (Decimal Inch)

0.5000

Insert Hand

Right Hand

Rake

Positive

Multi-use Tool

Yes

Insert Holding Method

Screw

Coating Classification

PVD

Width (mm - 2 Decimals)

12.70

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.5000

Vendor Drop Ship

N

Thickness (Inch)

5/32

Thickness (Decimal Inch - 4 Decimals)

0.1560

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C5

Manufacturers Catalog Number

EM19C160

Length (Inch)

3/4

Length (Decimal Inch - 4 Decimals)

0.7500

Coating/Finish

AlTiN

Coating Process

PVD

Series

EM

Insert Material

Solid Carbide

Thickness (mm)

3.96

Number of Cutting Edges

2

ANSI Code

EM19C160ET520

Length (mm)

19.05

Material Application

Steel

Cutting Edge Style

Honed

Product Overview
Milling Insert: ET520, Solid Carbide Coated, 0.156" Thick, 1/2" Wide
