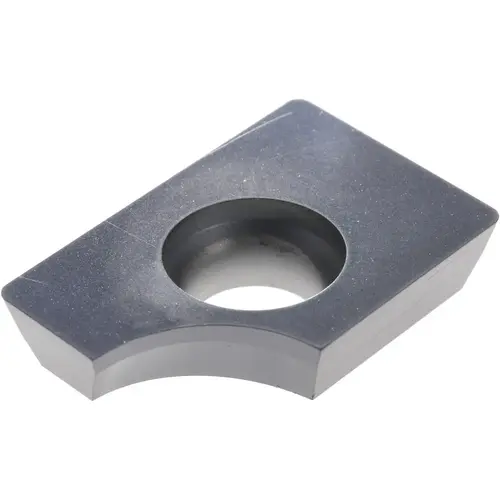

Superbee EM19C250ET520 Milling Insert: ET520, Solid Carbide AlTiN

Item #: EM19C250ET520 by Superbee

See reviewsSee reviews
See reviews summary
In Stock

$95.87

/each
SAVE UP TO 9.59
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 10 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Thickness (Decimal Inch - 4 Decimals)

0.1560

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Width (mm - 2 Decimals)

12.70

Coating Classification

PVD

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

Parallelogram

Chip Breaker

None

Insert Style

EM

Insert Size Code

19C250

Inscribed Circle (Inch)

1/2

Manufacturer Grade

ET520

Single or Double Sided Insert

Single

Cutter Series Compatibility

BE

Length Range (Decimal Inch)

0.7000 to 0.9000

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Inscribed Circle (mm)

12.70

Concave Radius (Decimal Inch)

0.2500

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

C5

Manufacturers Catalog Number

EM19C250

Length (Inch)

3/4

Length (Decimal Inch - 4 Decimals)

0.7500

Coating/Finish

AlTiN

Coating Process

PVD

Series

EM

Insert Material

Solid Carbide

Thickness (mm)

3.96

Number of Cutting Edges

1

ANSI Code

EM19C250ET520

Length (mm)

19.05

Material Application

Steel

Cutting Edge Style

Honed

Product Overview
Milling Insert: ET520, Solid Carbide Coated, 0.156" Thick, 1/2" Wide
