Features
- Constructed from solid brass with an Antique Brass finish, providing a functional and classic appearance for door security.
- Features a 42" length and 5/8" diameter, with a 5/8" bolt offset and 1-1/16" bolt throw for effective door locking.
- Designed for surface mounting on outside opening doors, compatible with universal, mortise, and angle strike plates.
- Includes 4 solid brass guides with a ball bearing system that prevents rattling and protects the bolt barrel from wear.
- Heavy-duty surface bolt design with a 1-3/8" knob projection and 1-1/4" knob diameter for manual operation.
- Suitable for entry door security hardware applications, providing an additional locking point for residential or commercial doors.
- Supplied with 3 strike types and matching solid brass Phillips head screws to facilitate a straightforward installation process.
Length
42
CatchType
Barrel Slide Bolt Latch
Dimensions
Diameter: 0.625 inches
Finish
US5
Box Qty
1 PC
Rod Dimensions
42"
Material
Solid Brass
Width
5/8
Function
Surface Bolt
Height
.625, 0.625
Screws Included
Yes, With solid brass Phillips Head Screws
Size
42" Length
Other Specifications
Bolt Offset: 5/8" Guide Width: 1-1/2" Guide Projection: 9/16" Knob Projection: 1-3/8" Knob Diameter: 1-1/4" Bolt Throw: 1-1/16"
Includes
4 Solid Brass Guides
Product Type
Surface Bolt w/ Off-set
Pack Size
1
Projection
1-1/4
Available Strikes
Universal Mortise & Angle Strike
Dimension
42"
Hazardous Material
No
Series
Bolts
Manufacturer Warranty
Limited 1 Year Mechanical and 1 Year Finish Warranty
Finish code
US5
No of inners
1
Options
Heavy-Duty, Offset
Mounting Method
Surface
Product Material
Brass
Substrate Type
Brass
Product Size
42"
Map Policy
Yes
Product Overview

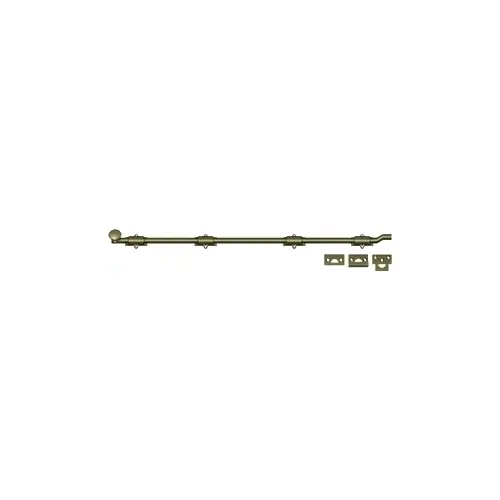

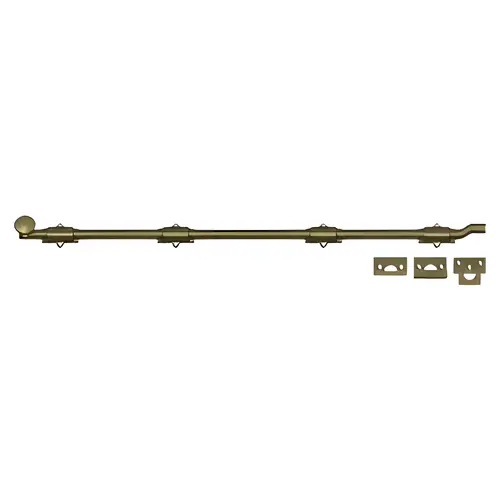

The 42" Surface Bolt with Offset is a heavy-duty security hardware component designed for mounting on outside opening doors. Constructed from solid brass, this surface bolt provides a functional locking mechanism when primary locks are not in use. The bolt features a 42" length and a 5/8" diameter, with a 5/8" bolt offset and a 1-1/16" bolt throw. The guide width is 1-1/2" with a 9/16" guide projection, while the knob has a 1-3/8" projection and a 1-1/4" diameter. This unit includes 4 solid brass guides that utilize a ball bearing system to prevent rattling and protect the bolt barrel from scratches. The package includes 3 types of strikes: universal, mortise, and angle, along with matching solid brass Phillips head screws for installation. This surface bolt is suitable for various door security applications and is finished in Antique Brass.
