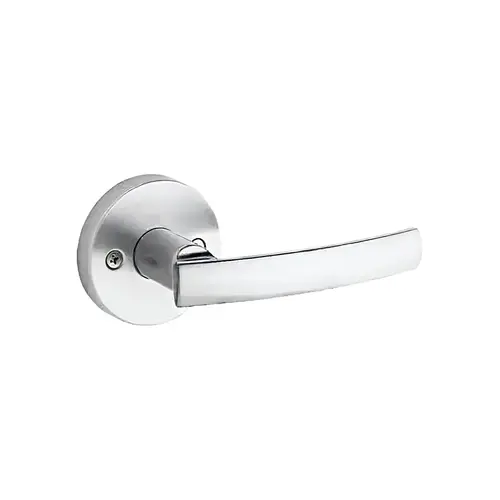

Kwikset 157SYLRDT-26D Sydney Half Dummy Lever, Satin Chrome

Sydney leverKwikset Signature Series

The Sydney lever with its soft arch was purposefully designed for ergonomic comfort without sacrificing style. Its dynamic arched design complements both linear and round decor elements . The graceful curve of the Sydney lever blends well with transitional and contemporary design styles.

Features:

• Reversible lever fits both left and right-hand doors.

• Available with a round or square rose.

• ANSI/BHMA Grade 2 Certified.

Specifications: Door Prep:

• Cross Bore 2 1/8" or 1 1/2".
• Edge Bore 1"
• Latch Face 1" x 2 1/4".

Backset:

• 1 3/8" - 1 3/4” Doors standard.
• Thick door service part available for up to 2 1/4".

Cylinder:

• SmartKey Security™

Faceplates:

• 1" x 2 1/4" Specify round corner, square corner or drive-in.

Strikes:

• 2 1/4" Full lip square or round corner

Rose:

• Specify round or square.

Bolt:

• 1/2" throw.

Door Handing:

• Reversible for right or left handed doors.

ANSI/BHMA:

• Grade 2 Certified.

UL:

• 20 Min UL fire rating available upon request; passage, privacy and entry functions.

ADA:

• Functions 154, 155, 156 are in compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA).

Warranty:

• Lifetime Mechanical and Lifetime Finish

Functions: 154 Passage/Hall/Closet:

• Both levers always free.

155 Privacy/Bed/Bath:

• Both levers locked or unlocked by push-button inside. Outside lever unlocked by emergency key.

156 Keyed Entry Lever:

• Both sides locked or unlocked by key outside or push-button inside.

157 Half Dummy Trim, Surface Mounted:

• For doors where only a pull is required. No operation.

966 Interior Pack:

• Outside handleset. Inside lever.

Finishes:

• Venetian Bronze - 11P

• Satin Nickel - 15

• Polished Chrome - 26

• Satin Chrome - 26D

• Matte Black - 514
