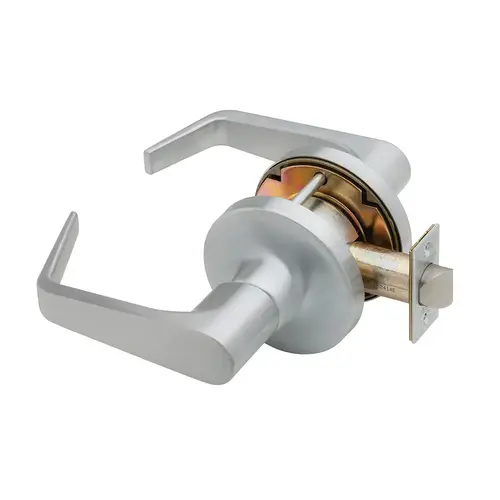

Falcon T101S D 626 T Series Passage Dane Lever Lock with 98535 Latch 5164 Strike Satin Chrome Finish
Item #: T101S D 626 by Falcon
UPC #: 840067600634
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Pressure Release Levers
- Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
- Heavy Duty Compression Springs Behind the Rose Provide Consistent Lever Return and Prevent Lever Sag
- UL10C 3 Hour A Label
- Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
- Non Handed Design
- Limited 10 Year Warranty
- Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
- Handing: Locks are non-handed.
- Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
- Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
- Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
- Screws: Furnished with combination screws for use in wood or metal doors and frames.
- Electrified Functions: Available in 24 VDC .185 AMP.
Finish
Satin Chrome
Function
Passage
Series
T Series
Design
Dane
Backset
2-3/4"
Strike
ASA Strike
Grade
Grade 1
Color Code
626/US26D
Package Volume
0
ANSI Function
F75 - Passage
Lever/Knob Design
D - Dane
Package Qty
1
Rose/Escutcheon Design
3-1/2 In. Diameter
Base Material
Brass or Bronze
Strike Size
4-7/8" x 1-1/4"
Strike Number
5164
Manufacturer Parent
Allegion
Knob/Lever Size
5 Inch
Latch Number
23981137
Finish Description
Satin Chrome
Latch Type
Spring Latch
Function Description
Latch retracted by knobs/levers at all times
Sub-Series
CL_Cylindrical_Locks_Falcon_53
Lever Style Family
Straight Return Lever
ADA Compliant
YES
Front Size
1-1/8" x 2-1/4"
Lever Length-Inches
5 Inch
Handle Type
Lever
Door Cross Bore
2.125 Inch
Application
Retail; Multi Family; Government; Industrial
Trim Material
Solid Pressure Cast Zinc (Lever)
Function Family
Passage/Hall/Closet
Standards
ANSI/BHMA A156.2; UL Listed
Rose Diameter
3-1/2 Inch
Lever Style
Angled Return Lever
Latch bolt size
1/2 Inch
Product Type
Cylindrical Lock
Rose/Escutcheon Trim
Round Rose
Product Projection
3-1/4 Inch
Features
Proven Compression Spring Design Supports Levers Eliminating Lever Sag and Provides Years of Reliable Service; Pressure Release Outside Lever Disengages when Locked to Protect Internal Mechanisms
Strike Type
ANSI Curved Lip
Latch Corner
Square
Strike Lip
1-5/16 Inch
Finish Family
Satin Chrome
Alternate Part Number-1
104723
Latch Bolt Type
Springlatch
Knob/Lever Design
Dane
Rose/Escutcheon Size
3-1/2"
Latch Bolt Faceplate Size
2-1/4" x 1-1/8"
Door Bore Size
2-1/8"
Lock Category
Cylindrical Lock
Door Thickness Min
1-3/4"
Latch Bolt Face Type
Square Corner
Latch Bolt Throw
1/2"
Rose/Escutcheon Style
Rose
Door Thickness Max
2-1/8"
Knob/Lever Style
Lever
Handing
Non-Handed
Cylinder Included
No
Cylinder Type
None
Pack Size
1
Height
3.54
Length
7.28
Width
6.89
MADE IN THE USA
No
Package Quantity
1
UL Listed
No
Door Handing
Non-Handed
AbilityOne
No
UNSPSC
46171523
GSA Approved
No
TAA/BAA Compliant
Yes
Product Overview
Passage/Closet Latchset, Dane Lever, Satin Chrome
Simply put, the Falcon T Series lock is the most versatile lockset in the industry. This extra heavy duty lock can accept any manufacturer's cylinder, and the cylinder can easily be removed for quick re-keying. Redesigned with a compression spring behind the cylinder, the T Series is now stronger than ever and lever sag has been virtually eliminated. This adaptable lock is well suited for either new construction or retrofit use in buildings as varied as multi-family, retail, institutional and government/military.
Can accept any manufacturer's cylinder, and the cylinder can easily be removed for quick, easy re-keying.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
