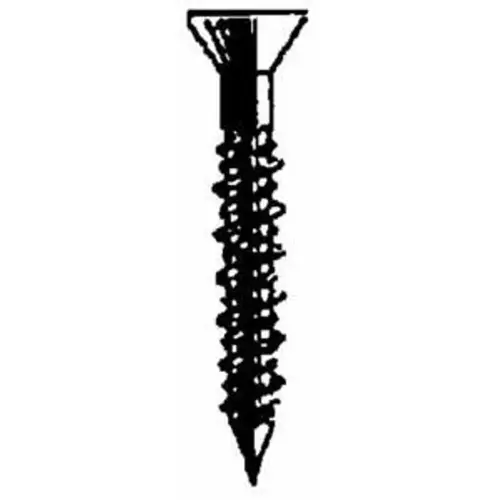

Tapcon 3140 Buildex Concrete Screw Anchor, 3/16 in Dia, 2-3/4 in L, Stainless Steel, Climaseal, 100/BX - pack of 100
Item #: 3140 by ITW CONSTRUCTION PRODUCTS
UPC #: 774463314003
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Fast installation, just drill a hole and drive an anchor
- Replaces small diameter expansion anchors, plugs and screws in light to medium duty applications
- No need to pre-spot holes and no inserts are required
- Reversible and removable, can be installed close to an edge
- Compatible for use in ACQ treated wood
- 3/16 in Dia uses a #2 Phillips flat head (PFH)
- Climasealâ„¢ coating is standard on all Tapcon anchors to provide extended corrosion resistance
- Advanced Threadform Technology® cuts into masonry materials for greater pullout values
- Nail-type point guides the anchor into the pre-drilled hole and excellent for wood to concrete applications
- Phillips flat head style is available when flush seating is necessary in countersink applications
Diameter
3/16"
Finish
Climaseal
Material
Stainless Steel
Length
2-3/4
Tensile Strength
220 to 340 lb
Head Type
Flat Phillips
Color
Blue
Drill Size
5/32 x 4-1/2"
Shear Strength
400 to 730 lb
Minimum Embedment Depth
1"
Nomenclature
3140TAP 3/16X2-3/4 PH W/B
Fixture Thickness
1 to 1-3/4"
Specifications:
Application: For securing electrical junction boxes, conduit clips, exterior insulation systems, HVAC strapping, plywood backer boards, wood headers, furring strips to masonry
The original masonry anchor that cuts its own threads into concrete, brick or block. Maximum performance is achieved because the Tapcon anchor, the condrive installation tool and the carbide-tipped Tapcon drill bits are designed to work as a system. It is essential to use the condrive tool and the correct drill bit to assure consistent anchor performance.
