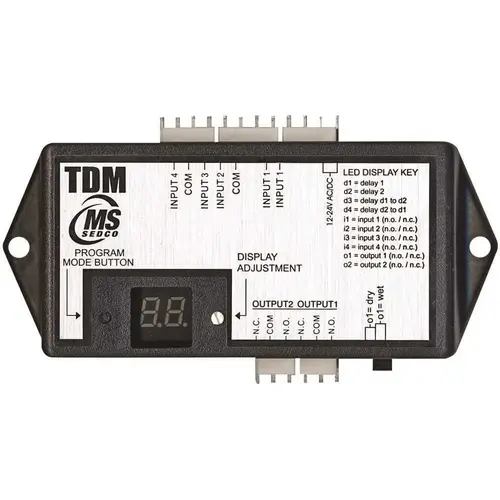

MS Sedco TDM SEDCO Commander Black Lexan Time Delay Module, 2 Outputs with up to 4 Inputs, Time Delay 0-Seconds to 99 Seconds

The TDM is a multi-purpose microprocessor based timing module that can be used for a variety of applications. Its unique design and open architecture allows the TDM to be used in any type of application that requires timing control of up to 2 outputs with up to 4 inputs. Common Applications include. Using the TDM as a make/break relay to eliminate mechanical binding of the electrical locking mechanism on an automatic door. The make relay can even be configured as a wet output to directly apply power to the electric locking device. Using the TDM to sequence vestibule doors. 1 unit is capable of sequencing the vestibule doors from both directions. The 4 inputs on the TDM allow sequencing or independent operation of the 2 outputs. Input 1 will sequence Output 1 then 2. Input 2 will sequence Output 2 then 1. Input 3 will operate Output 1 independently. Input 4 will operate Output 2 independently.

• Time delay module
• For use with applications that requires timing control, 2 outputs with up to 4 inputs
• 1-year limited warranty
• Form C, 3 Amp contact rating
• 3 Amp contact rating
• 2-Watt maximum current draw
• 12 at 24 VAC or VDC voltage
• 4-3 at 4 in. x 2-1 at 4 in. x 3 at 4 in. unit dimension
• ANSI A156.10 and A156.19
