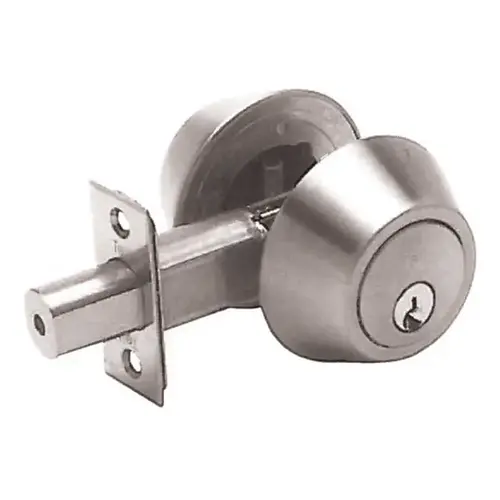

Tell Manufacturing DB3062-SC-15 DB3062 - Grade 3 Double Cylinder Deadbolt
Item #: DB3062-SC-15 by Tell Manufacturing
Brand: Tell Manufacturing
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Function
Double Cylinder Deadbolt
Product Type
Auxiliary Lock
Series
DB3000 Series
Sub-Series
DB3062-SC
Cylinder Keying
Keyed Different
Manufacturer Parent
Spectrum
Number of Pins
6
Keyway
Schlage C
Color Code
619/US15
Warranty
Lifetime limited
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Grade
ANSI/BHMA Grade 3
Features
Chassis: Tubular, Steel; 1" Housing Diameter (Stainless Steel)
Deadbolt Material
Stainless Steel
Function Family
Double Cylinder Deadbolt
Exterior Lock Type
Keyed
Deadbolt Housing Size
1" x 2-1/4"
Interior Lock Type
Keyed
Standards
Complies with ANSI A156.5
Deadbolt Type
Square Corner
Cycles
150,000
Cylinder Material
Solid Brass
Strike Size
1-1/8" x 2-3/4"
Keying Type
Keyed Different
Included Components
(2) Nickel Silver Keys
Finish Family
Satin Nickel
Strike Type
Square Corner
Finish Description
Satin Nickel
Deadbolt Throw
1 Inch
Door Thickness
1-3/8 to 1-3/4 inch
Finish
619 - Satin Nickel
Keyed
Yes
Keying
None (Select for Less Cylinder Options)
Standard Strike
1-1/8" x 2-3/4"
Door Thickness Range
1-3/8" To 1-3/4"
Cylinder Classification
Conventional Cylinder
Keyway Profile
Schlage C
Product Overview
Tell Pro Line Grade 3 Double Cylinder Deadbolt, 2-3/8" to 2-3/4" Adjustable Backset, US15 Satin Nickel Finish, Schlage C Keyway, Keyed Different
