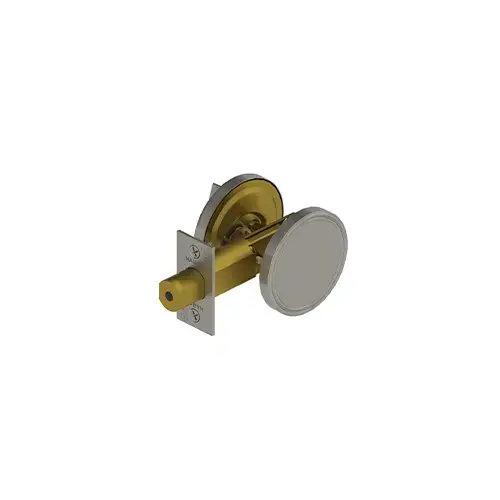

3220 Thumbturn by Blank Plate Deadbolt Satin Chrome Finish

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Hager 118136 3220 Thumbturn by Blank Plate Deadbolt Satin Chrome Finish

Item #: 118136 by Hager

UPC #: 798550181361

See reviewsSee reviews
See reviews summary
In Stock

$45.21

/each
SAVE UP TO 4.52
Buying in bulk

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • One Sided Deadbolt
  • Thumbturn With Blank Exterior Plate
  • For Doors 1-3/8" To 1-3/4" Thick
  • Grade 2
  • Steel / Zinc Mechanism

Finish

Satin Chrome

Backset

2-3/4"

Function

Thumbturn

Strike

Square Corner Deadbolt Strike

Series

Hager 3200 Series

Warranty

Lifetime

Door Thickness

1-3/4" (45 mm)

Strikes

  • 3930 - 1-1/8" x 2-3/4" (29 mm x 70 mm) no-lip strike - standard
  • 3929 - 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA deadbolt strike – optional

Deadbolt

  • 1" (25 mm) Throw - Brass with concealed hardened steel roller to prevent sawing or cutting
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) square corner faceplate

Notes

Non-handed

Backsets

Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)

Exposed Trim

Wrought Brass, Bronze or Stainless Steel

LATCH OPTIONS / CAMS / TAILPIECES

US26D - SATIN CHROMIUM

FINISHES - LOCKS

US26D - SATIN CHROMIUM

Dimension

1" Interior Projection

Material

Wrought Brass and Steel Chassis

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

UL Listing Type

UL/cUL Listed for all functions up to 3 Hours

Door Range

1-3/8" to 1-3/4"

Hazardous Material

No

Strike Dimension

1-1/8" x 2-3/4"

Cross Bore Size

2-1/8" Bore

Finish code

US26D

Latch Faceplate Dimension

1-1/8" x 2-1/4"

No of inners

1

Product Overview

Functions:
Thumbturn w/ Blank Plate (E21112)
Applications:
Standard Duty Commercial
Notes:
Non-handed
Certifications:
  • ADA Compliant ANSI A117.1 Accessibility Code
  • BHMA Certified ANSI A156.36, Grade 2

Finishes:
US3, US4, US10B, US26D and US32D
Options:
  • Split Finish
  • Additional Deadbolts and strikes available

Warranty:
Lifetime
