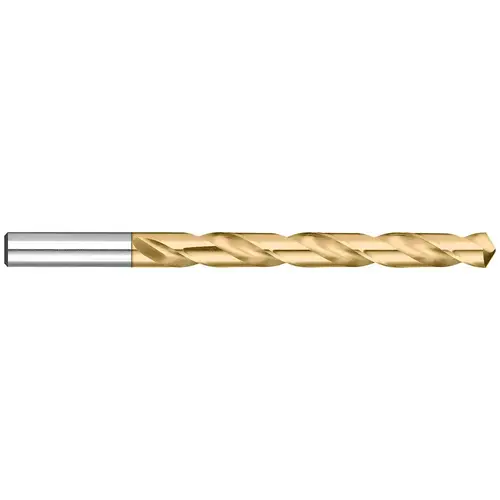

Jobber Drill: 1/16" Dia, 118 deg Point, High Speed Steel TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

TITAN CD47521Click To Copy Jobber Drill: 1/16" Dia, 118 deg Point, High Speed Steel TiN

Item #: CD47521 by TITAN

See reviewsSee reviews
See reviews summary
In Stock

$18.98

/each
SAVE UP TO 1.90

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 17 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Number of Flutes

2

Cutting Direction

Right Hand

Series

CD47

Point Type

Standard

Drill Bit Material

High Speed Steel

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

TiN

Coolant Through

No

Double Margin

No

Drill Bit Size (Decimal Inch)

0.3281

Drill Bit Size (Inch)

21/64

Drill Bit Size Range (Decimal Inch)

0.3000 - 0.3500

Drill Point Angle (Degrees)

118

Flute By Diameter Ratio

10xD

Flute Length (Decimal Inch)

3.3125

Flute Length (Inch)

3-5/16

Maximum Drilling Depth (Decimal Inch)

3.3125

Maximum Drilling Depth (Inch)

3-5/16

Number of Flats

0

Overall Length (Decimal Inch)

4.625

Overall Length (Inch)

4-5/8

Primary Workpiece Material

Non-Ferrous Metal

Primary Workpiece Material Code

N

Shank Diameter (Decimal Inch)

0.3281

Shank Diameter (Inch)

21/64

Shank Length (Decimal Inch)

1.3125in

Shank Length (Inch)

1-5/16

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0010 to +0.0000

Product Overview
Jobber Drill: 1/16" Dia, 118 deg Point, High Speed Steel TiN Coated, 1-7/8" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series CD47
