Jobber Drill: #20, 135 deg Point, Cobalt - pack of 12

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

TITAN CD50220-XCP12Click To Copy Jobber Drill: #20, 135 deg Point, Cobalt - pack of 12

Item #: CD50220-XCP12 by TITAN

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$55.66

/package
SAVE UP TO 5.57

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Number of Flutes

2

Cutting Direction

Right Hand

Series

CD50

Point Type

Split Point

Drill Bit Material

Cobalt

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

Oxide

Coolant Through

No

Double Margin

No

Drill Bit Size (Decimal Inch)

0.1610

Drill Bit Size (Wire)

#20

Drill Bit Size Range (Decimal Inch)

0.1500 - 0.2000

Drill Point Angle (Degrees)

135

Flute By Diameter Ratio

13xD

Flute Length (Decimal Inch)

2.1250

Flute Length (Inch)

2-1/8

Maximum Drilling Depth (Decimal Inch)

2.1250

Maximum Drilling Depth (Inch)

2-1/8

Number of Flats

0

Overall Length (Decimal Inch)

3.25

Overall Length (Inch)

3-1/4

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Shank Diameter (Decimal Inch)

0.1610

Shank Length (Decimal Inch)

1.1250

Shank Length (Inch)

1-1/8

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0007 to +0.0000

Product Overview

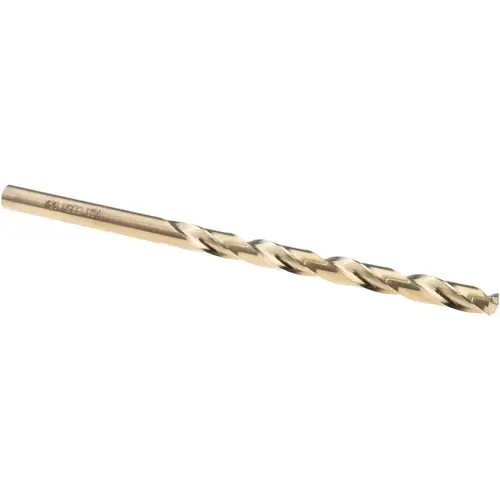

Jobber Drill: #20, 135 deg Point, Cobalt Oxide/Gold Coated, 3-1/4" OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series CD50
