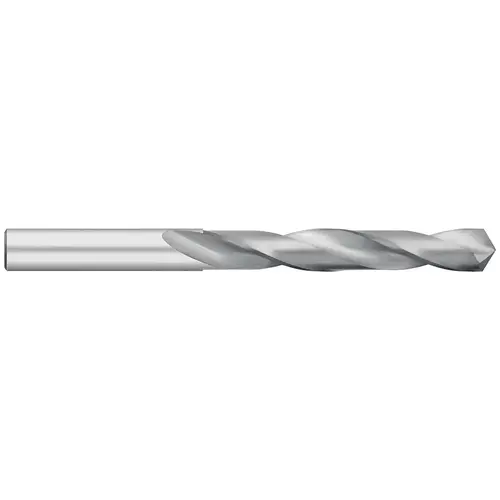

TITAN TC19249 Jobber Length Drill Bit: ( 0.0730") Dia, 118 deg Point, Solid Carbide Bright/Uncoated

Item #: TC19249 by TITAN

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$18.22

/each
SAVE UP TO 1.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Straight

Overall Length (mm)

44.45

Number of Flutes

2

Cutting Direction

Right Hand

Series

TC19

Point Type

Standard

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Drilling

Coating/Finish

Bright/Uncoated

Coolant Through

No

Double Margin

No

Drill Bit Grade

General Purpose

Drill Bit Size (Decimal Inch)

0.0730

Drill Bit Size (Wire)

#49

Drill Bit Size Range (Decimal Inch)

0.0500 - 0.1000

Drill Point Angle

118 degrees

Flute By Diameter Ratio

12xD

Flute Length (Decimal Inch)

0.8750

Flute Length (Inch)

7/8

Flute Length (mm)

22.23

Maximum Drilling Depth (Decimal Inch)

0.8750

Maximum Drilling Depth (Inch)

7/8

Number of Flats

0

Overall Length (Decimal Inch)

1.7500

Overall Length (Inch)

1-3/4

Primary Workpiece Material

Aluminum & Non-Ferrous

Primary Workpiece Material Code

P

Shank Diameter (Decimal Inch)

0.0730

Shank Length (Decimal Inch)

0.8750

Shank Length (Inch)

7/8

Tool Performance

General Purpose

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.0005 to +0.0000

Product Overview
Jobber Length Drill Bit: ( 0.0730") Dia, 118 deg Point, Solid Carbide Bright/Uncoated, 1-3/4" OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series TC19
