"Hi" thread gives low bursting component force from the sharp 30 degree angle thread
"Lo" thread at 60 degree angle uses the vertical force component to press fibrous and particle components of panels onto the "Hi" thread and are contained by their greater height
The very small shank on a Hi-Lo screw means less material displacement than conventional threads
Packing: As shown below.
Sold In: Full box quantities only.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
Titus 006077.852.001 #8 x 50mm Funnel Head Confirmat Screw, Pozidriv Hi-Lo Thread and Sharp Point, Box of 3000 by Company Inc.
Item #: 006077.852.001 by Titus Tool
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Black
Material
Steel
Length
2"
Head
Funnel
Thread
Hi-Lo
Type
Carcase Construction Screws
Gauge
3/16"
Drive
Phillips

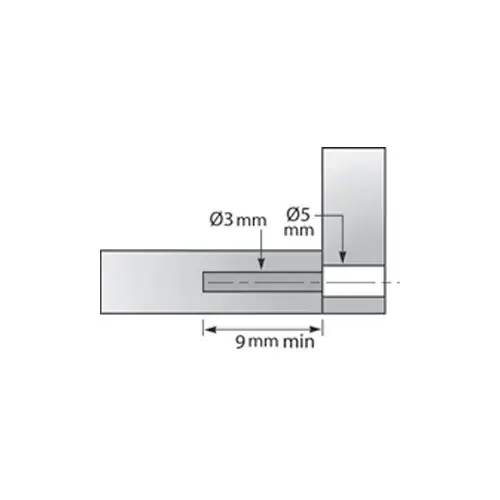

Drilling Depth
45 mm
Drilling Depth (Mm)
45 mm
Product Type
Carcase Construction Screw
Length (mm)
50 mm
Manufacturer Series
System 1
Screw Diameter
4 mm
Product Overview
Hi-Lo Carcase Construction Screws
The Hi-Lo carcase construction screw (CCS) offers a strong, tolerant and cost effective connection with minimal panel preparation"Hi" thread gives low bursting component force from the sharp 30 degree angle thread
"Lo" thread at 60 degree angle uses the vertical force component to press fibrous and particle components of panels onto the "Hi" thread and are contained by their greater height
The very small shank on a Hi-Lo screw means less material displacement than conventional threads
Packing: As shown below.
Sold In: Full box quantities only.
