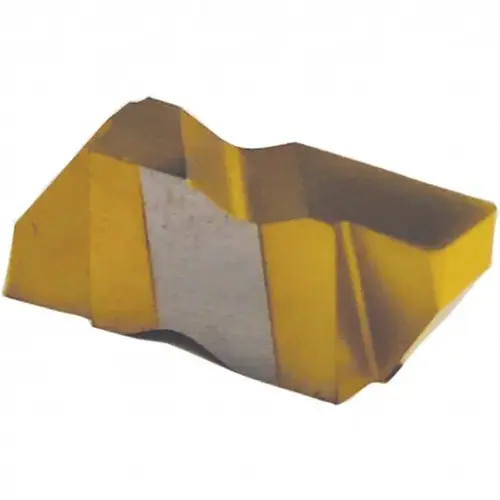

Grooving Insert: FLF3125 GP3R, Solid Carbide TiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Tool-Flo 563025LJ5R Grooving Insert: FLF3125 GP3R, Solid Carbide TiN

Item #: 563025LJ5R by Tool-Flo

See reviewsSee reviews
See reviews summary

$34.76

/each
SAVE UP TO 3.48

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Series

Face Grooving

Coating Process

PVD

Coating/Finish

TiN

Corner Radius (Decimal Inch)

0.0050 to 0.0100

Manufacturers Catalog Number

FLF-3125L

Material Grade

Micrograin

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1250

Insert Holding Method

Clamp

Insert Thickness (Decimal Inch)

0.1950

Maximum Depth of Cut (Decimal Inch)

0.1800

Multi-use Tool

No

Single Or Double End

Double

Insert Hand

Left Hand

Full Radius

No

Insert Style

FLF

Cutting Height (Decimal Inch)

0.3440

Minimum Corner Radius (Decimal Inch)

0.0050

Manufacturer Grade

GP3R

Maximum Depth Of Cut Range (Decimal Inch)

0.1500 to 0.2000

Cutting Width (mm)

3.18

Maximum Corner Radius (Decimal Inch)

0.0100

Product Overview
Grooving Insert: FLF3125 GP3R, Solid Carbide TiN Finish, Left Hand, 0.125" Cutting Width, 0.18" Max Depth, Series Face Grooving
