Grooving Insert: FLG0.375 AC3, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

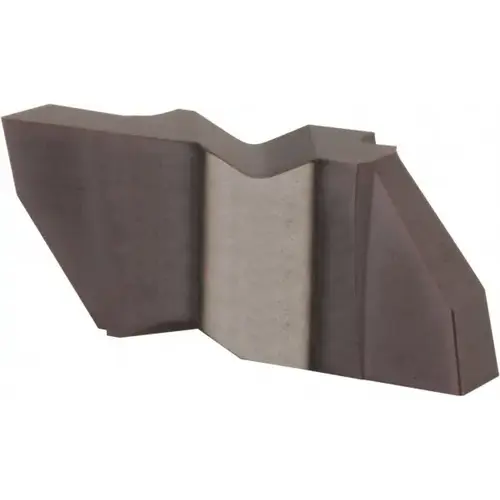

Tool-Flo 563825RAC3R Grooving Insert: FLG0.375 AC3, Solid Carbide AlTiN

Item #: 563825RAC3R by Tool-Flo

See reviewsSee reviews
See reviews summary
In Stock

$37.19

/each
SAVE UP TO 3.72

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 65 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Solid Carbide

Series

Flo-Lock

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0050 to 0.0100

Manufacturers Catalog Number

FLG-3125R

Material Grade

C2

Primary Workpiece Material

Cast Iron

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1250

Insert Holding Method

Clamp

Lead Angle

3

Maximum Depth of Cut (Decimal Inch)

0.1800

Multi-use Tool

No

Rake

Neutral

Single Or Double End

Double

Insert Hand

Right Hand

Rake Angle

0.00

Full Radius

No

Insert Style

FLG

Insert Size Code

3125

Cutting Height (Decimal Inch)

0.1800

Minimum Corner Radius (Decimal Inch)

0.0050

Manufacturer Grade

AC3

Maximum Depth Of Cut Range (Decimal Inch)

0.1500 to 0.2000

Iso Code

FLG-3125R

Gage Diameter (Decimal Inch)

0.3750

Product Overview
Grooving Insert: FLG0.375 AC3, Solid Carbide AlTiN Finish, Right Hand, 0.125" Cutting Width, 0.18" Max Depth, Series Flo-Lock
