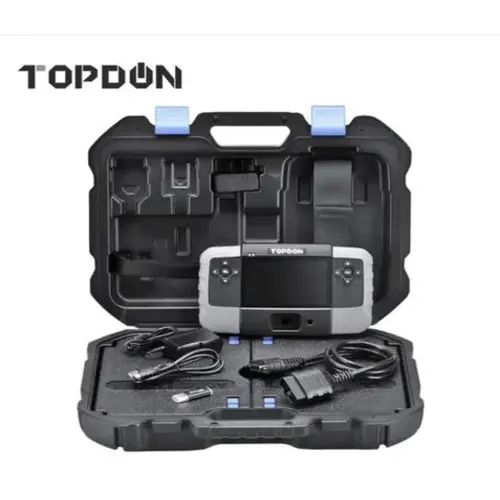

Topdon TDN-TNJ1000 Immobilizer OBD Key Programmer
Item #: TDN-TNJ1000 by Topdon
In Stock $812.57 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Product Type
Automotive
Function
Key Programmer
Product Height
1.3 Inch
Product Length
9.1 Inch
Product Width
5-1/2 Inch
Included Components
T-NINJA 1000 Programming Tablet; Diagnostic cable; USB 2.0 Micro SD Reader; Power Adapter; USB Cable; Quick-Start Guide; Blow Molded Storage Case
Display Size
5 Inch
Display Resolution
800 x 480
Features
Real-Time Easy to Use Guided Operation; Step by Step Guidance; Pin Code Reading (Most Vehicles); No Soldering or Eeprom; Key Generation; Key Learning; Remote Learning; Key Deletion; All Programming is Done by OBD
Input Voltage
12 V
Manufacturer Parent
Topdon
ROM Size
128 MB
RAM Size
256 MB
Sub-Series
TDN-TNJ1000
Application
Automotive
The T-Ninja 1000 is an OBDII key programming tool for the automotive immobilizer system. Its integrated RFID Induction Slot diminishes human error and picks up data instantly, making your workflow more efficient. With a real-time guided operation and built-in tips and hints, this product will minimize your downtime and speed up your work. This cost-effective device maximizes its value with so many practical functions.
Features:- Read Pin Codes
- Add Keys and Erase Keys
- Newest Version
- Step-By-Step Operating Tips
- Always Be Up-To-Date With TOPDON's Constant Upgrades and Work on the Latest Vehicles
- Database With Over 5,000 Vehicle Model Details
- Comes with an Integrated RFID Induction Slot
- Key Programmer through OBD - no soldering or EEPROM required
- EXTENSIVE COVERAGE: Coverage for most Foreign and Domestic vehicles that require key programming through the OBDII diagnostic port.
- TECHNICAL SUPPORT: The T-NINJA 1000 includes access to a growing online database of tips, tricks, and walkthroughs. The tool is supported by our industry-leading call center.
- THOUGHTFUL DESIGNS: With rubberized outer protection and rugged internal housing, this tool is built for daily use in a shop environment.
- Operating System:Rt-thread
- CPU:ARM Cortex-M4, 180MHz
- Display:5.0” TFT LCD, 800*480 Resolution
- Memory:256M RAM, 128M ROM, 16G Micro SD
- Material:ABS Plastic Shell, Silicone Button Starting time: ≤3S
- Connectivity:USB1.1
- OBD Interface:OBD-II 16PIN
- Buzzer:85db / min at10cm
- Current:500mA (typical)
- Input Voltage:DV 12V
- Power Consumption:1.8W (typical)
- Battery:350mAh Button Battery (not rechargeable)
- Working Humidity:≤95% RH
- Working Voltage:12V ± 25%
- Working Temperature:14℉ - 131℉ ( 10°C - 55°C)
- Dimensions:231.5*141.5*35mm (9.11*5.57*1.38 inches)
- Weight:480g (16.93oz)
- Dimensions:17" x 13.5” x 4.5” (Shipping)
- Weight:7 LBS. (Shipping)
