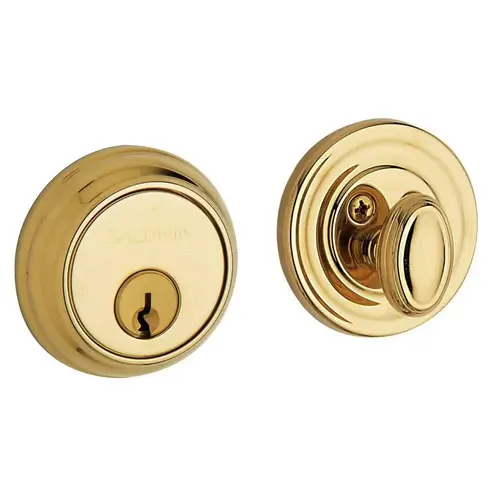

Baldwin 8031003 Estate Traditional Deadbolt, 1-5/8" Door Prep Polished Brass
Item #: 8031003 by Baldwin
UPC #: 723079089034
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Traditional Single Cylinder Deadbolt
- Deadbolt Case Formed Of Heavy Gauge Steel
- Reinforcing Strike Constructed Of High Grade Steel For Ultimate Strength And Durability
- Cylinder Protected By Free-Turning Cylinder Guard Made From Solid Brass
- Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty
Door Thickness
1-3/4"
Latch Faceplate
Square Corner
Theme
Transitional
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Keyway
Schlage C
Collection
Estate
Cylinder
5 Pin C
Edge Bore
1"
Solid Construction
Solid Brass
Series
8000 Series
Cross Bore
1-5/8"
Function
31-Single Cylinder Deadbolt
Strike
Reinforcing Strike
Cylinder Type
Conventional Cylinder
Finish Description
Bright Polished Brass
Keyblank Grouping
BALD-SCHL-C-5-1
Rose/Escutcheon Trim
Round Rose
Product Type
Auxiliary Lock
Finish
Lifetime PVD Polished Brass
Grade
ANSI/BHMA Grade 2
Projection
0.5313
Product Height
2
Included Components
(1) Tubular Single Cylinder Deadbolt Set
Keying Charges
Residential-Conventional
Product Material
Solid Forged Brass
Warranty
Lifetime Limited Mechanical/Finish
Color Code
003
Style
Square
ADA Compliant
No
Finish Family
Polished Brass
Door Cross Bore
1.625 Inch
Standards
ANSI/BHMA A156.13
Function Family
Single Cylinder Deadbolt
Features
Deadbolt Case is Formed of Heavy Gauged Steel For Strength; Most Interior Parts are Made of Solid Brass; Specially Designed Reinforcing Strike Constructed of High Grade Steel
Manufacturer Parent
Spectrum
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
4.6 x 3.7 x 3.9
Sub-Series
RL_Deadbolts_Baldwin_03
Dimension
2" Diameter, 7/10" Projection
Material
Brass
Handing
Reversible
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and Limited Lifetime Finish Warranty
Rose/Escutcheon Design
Traditional Rose
Door Range
1-3/4"
Hazardous Material
No
Strike Dimension
1-1/8" x 2-3/4"
Cross Bore Size
1-5/8" Bore
Finish code
003
Design
Traditional
Latch Faceplate Dimension
1" x 2-1/4"
No of inners
1
No Of Pins
5 Pin Cylinder
Product Overview
Traditional 1-5/8" Single Cylinder Deadbolt Lifetime Brass Finish
